Wavelet


Please call us at 416.821.4723 for pricing & availability or

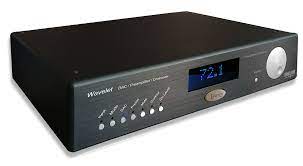

The Legacy Audio Wavelet is a control preamp, a high-end DAC, a 2/3/4-way digital crossover with time alignment and a speaker correction system that will literally “learn” your room.

n an ideal world you would hear the music exactly as it was intended to be heard. But rooms are not perfect and resonances play havoc below 500Hz. The Wavelet processor will analyze your room and make the calculations to reduce resonant energy as late as 40msecs. The improvement in tonal balance and pitch definition is not subtle.

Already have a favorite DAC with a volume control? How about a big vinyl collection? Analog lovers can take advantage of balanced XLR or unbalanced RCA inputs without concern of digital artifacts. An apodizing circuit corrects for the the pre-ringing native to CODECs. Wavelet has adequate headroom to handle these higher level signals while functioning as a crossover and compensating for room resonances. Wavelet processes at 56 bits of depth in a domain more than one trillion times finer in resolution than that of a standard CD.

The Wavelet is by design upgradable. The unit can download firmware updates directly when you choose.

Setup is simple, and the Wavelet is easily controlled with the included App that runs in your iPad/iPhone/Android or other smart device. Wavelet comes with a precision calibrated microphone and a Wi-Fi adapter that allows you to work wirelessly with the Wavelet.

Specifications

Analog Inputs: Two pair Stereo balanced XLR inputs

Two pair Stereo unbalanced RCA inputs

One Measurement microphone XLR input

Digital Inputs: USB audio, 24 bit, 44.1 – 96 kHz, PCM up to 352.8 kHz.

Coaxial SPDIF, 24 bit, 44.1-96kHz

Optical TosLink, 24 bit, 44.1-96kHz

Analog Outputs: 8 balanced output channels on 8 XLR connectors. 0 dBFS*1 = 8 dBV*2 , 33 Ohm output impedance

8 unbalanced output channels on 8 RCA connectors. 0 dBFS*1 = 8 dBV*2, 33 Ohm output impedance.

Digital Outputs: Coaxial SPDIF, 24 bit, 44.1-96kHz

Optical TosLink, 24 bit, 44.1-96kHz

Analog Input Adjustments: Balanced input sensitivity without attenuation 0 dBFS*1 = 1 dBV*2, input impedance 20 kOhm

Unbalanced input sensitivity without attenuation 0 dBFS*1 = 1 dBV*2, input impedance 100 kOhm

Analog attenuation available in three steps of -3 dB, -6 dB and -12 dB for an input sensitivity of 0 dBFS = 4 dBV, 7 dBV or 12dBV respectively

Processor: Internal processing sample rate 96kHz, bit depth 56 bits

Measurement Microphone: Included

Control Interface: Legacy Wavelet app, included. Running on iOS, Android, iPad, Mac or PC device.

Control Connections: Wi-Fi or Ethernet CAT5/CAT6 connection

Dimensions (HxWxD, inches): 4.125 x 17.5 x 12

Weight: 13.5 lbs

Shipped Dimensions: 8 x 23 x 17

Shipped Weight:  18 lbs
