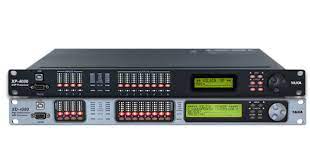

The Legacy Wavelaunch Processor is at the heart of many Legacy systems. These powerful digital signal processors feature high quality AD/DA conversion and multiple inputs and outputs to integrate subwoofers and surround speakers. They are used as the crossover in the award winning Whisper XDS and Aeris systems, and provide parametric and graphic EQ for individual driver sections as well as the entire speaker.
Specifications
Processor (DSP): 40-Bit Floating Point
Analog Converters: Super Performance 24-bit
No. of Programs: 8 per I/O
Graphic EQ: 31 Band
Filters: Butterworth, Linkwitz-Riley & Bessel
Connectors: 4 XLR In, 8 XLR Out, USB Type B
Dynamic Range: 115 dB (unweighted)
Distortion: 0.002% (1kHz @ +4dBu)
Frequency Response (Hz, +/- .1 dB): 20 to 30 kHz
Dimensions (HxWxD, inches): 1.75 x 19 x 9
Weight: 10 lbs
Shipped Weight: 10 lbs
