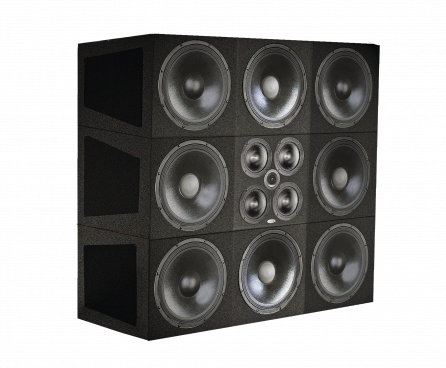

Wavelaunch Array

  • Sale
  • Regular price $45,210.00
bread


The Wavelaunch Array is designed specifically for the highest quality in music and sound reproduction, providing unprecedented uniform directivity control down to the second octave

The digital matrix steering assures off-center seating is as balanced as the center of the house. The 'tic-tac-toe' array utilizes dipolar radiators in the four corner cells to contour side radiation and greatly reduce spill-over.

Available with up to 4 channels of 1,000 watts internal power, the cells of the matrix are adjustable in time and intensity relative to their neighboring cells. The DSP processing is available in 4 x 8, 8 x 8, and 16 x 16 input/output configurations, making the Wavelaunch Array the perfect solution for high definition audio in the theater environment.

Specifications:

  • Application: Long projection, high SPL, live sound, theaters, auditoriums
  • System Type: Proprietary 4 way 'tic-tac-toe' array reduces bass spill-over and sidewall interaction
  • Mounting: Stackable
  • System Directivity: 45 degrees vertically, 45 degrees horizontally
  • Projection Distance: Up to 200 feet
  • Tweeter: Comrpession, coaxial
  • Midrange: (4) 6.5" arrayed drivers with phase plug
  • Midwoofer: (4) dipole, (4) sealed 15" carbon filled pulp
  • Subwoofer: mate with double Helix subwoofer
  • Low Frequency Alignment: Supercardioid
  • Freq. Response (Hz, +/-3dB): 35-20k
  • Sensitivity (Room, dB@ 2.83V): 110 dB
  • Crossover Freq. (Hz): 400, 800, 3K
  • Inputs: 4 XLR balanced inputs
  • Internal Amplification: (2) to (4) channels of 500 watt ICEpower®
  • Peak Output Current: 35 A per channel
  • Idle Noise: 80 microvolts
  • Output per channel: 500W @ 0.05% THD+N (1kHz, 4Ω)
  • Amplifier Efficiency: 83% (250W, 8Ω)
  • Protection Schemes: under-voltage, thermal, over-current, high freq.
  • Idle Power: 3 watts/module x 4
  • Start-up: soft start, mute/de-mute
  • Dimensions (HxWxD, inches): 3 sections, 18 x 54 x 18
  • Weight: 165 lbs per section
