Featuring the same Legacy Dual Air Motion tweeter system, 7" silver/graphite midrange woofers, and dual 12" ultra-linear bass drivers with 15 motors from the highly awarded Legacy Focus SE, each tower is equipped with 750 watts of internal ICEpower® bass amplification so the user needs only supply amplification for the top end.
These DSP controlled speakers include specialized boundary compensation to deliver impactful sound effects, pristine vocals and musical scores with extraordinary resolution. The Theater Towers are also available in a fully powered version - please inquire.

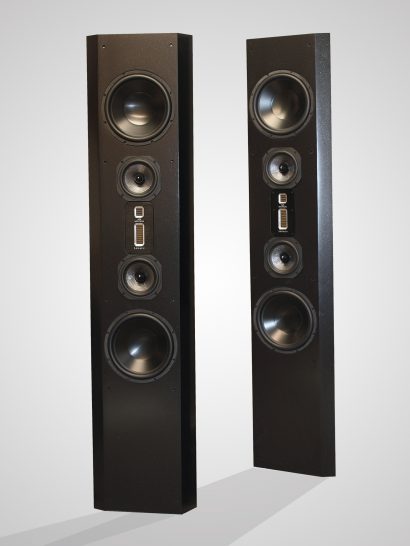

Flanking the screen, the Theater Towers with angled front baffle are less than a foot deep and allow listeners from the first to last row to indulge in rich, balanced sound.
Specifications:
- Application: Bi-amped front mains for corporate, community living, or large home cinemas
- System Type: Sealed symmetrical array, internally powered bass section
- Mounting: Floor standing, against wall
- System Directivity: 65 degrees horizontally, 55 degrees vertically
- Projection Distance: 8-45 feet
- Tweeter: Dual Air Motion Tweeter System- 1" AMT super tweeter
- Midrange: Dual Air Motion Tweeter System- 4" AMT tweeter
- Midwoofer: Dual 7" Silver/Graphite with cast frame
- Subwoofer: Dual 12" ultra-linear bass drivers with 15 lb motor
- Low Frequency Alignment: Sealed, acoustic suspension
- Inputs: 1 pair binding post for upper range, 1 XLR Bass section
- Internal Amplification: 750 watt ICEpower® amplifier
- Recommended Amplification: 1 External channel of 30 Watts or greater required for passive Upper Range
- Peak Output Current: 35 A per channel
- Idle Noise: 80 microvolts
- Output per channel: 750W @ 0.05% THD+N (1kHz, 4Ω)
- Amplifier Efficiency: 83% (250W, 8Ω)
- Protection Schemes: Under-voltage, thermal, over-current, high frequency
- Idle Power: 3 watts/module
- Frequency Response (Hz, +/-3dB): 18-30k
- Impedance: 4 Ohm/ 10k amp input
- Sensitivity (Room, dB @ 2.83V): 95
- Crossover Frequency (Hz): 120, 2.8k, 8k
- Start-up: Soft start, mute/de-mute
- Dimensions (HxWxD, inches): 78 x 14.5 x 10.5
- Weight: 211 lbs each
