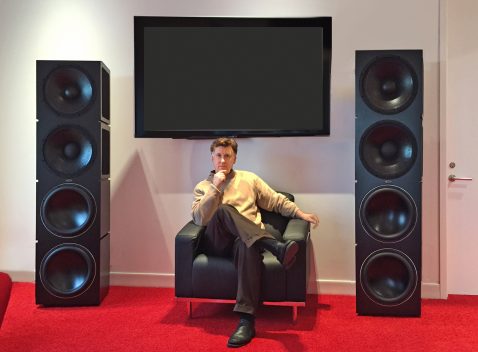

The Wall is a full-range loudspeaker system utilizing the present state of the art in driver, crossover, amplifier and acoustic radiation control technologies.
Featuring 24 bit digital signal processing, dual subwoofers and cool running reliable ICEpower® modules, The Wall is an excellent choice for applications that require high power performance and accurate sound.
Specifications:
- Application: High SPL, full range monitor
- System Type: Hybrid, vented sub, open air mids
- Mounting: Floor standing
- System Directivity: 60 degrees horizontally, 45 degrees vertically
- Projection Distance: 15-50 feet
- Tweeter: 2" compression driver, coaxial, titanium diaphragm
- Midrange: 15" accordion edge, cast frame, coaxial
- Midwoofer: Dual 15" carbon/pulp, cast frame
- Subwoofer: (2) 15" spun aluminum spun core 560 oz motor structure, dynamic braking
- Low Frequency Alignment: Vented
- Frequency Response (Hz, +/-3dB): 18-20k
- Sensitivity (Room, dB @2.83V): 105
- Crossover Frequency (Hz): DSP based 24dB Linkwitz-Riley, phase compensated 150, 1.2k, 2.2k
- Inputs: 1 pair upper frequency binding posts, 2 XLR mid bass, sub
- Internal Amplificiation: internal 750 watt ICEpower® amplifier modules
- Peak Output Current: 35 A per channel
- Idle Noise: 80 microvolts
- Output per channel: 750W @ 0.05% THD+N (1kHz, 4Ω)
- Amplifier Efficiency: 83% (250W, 8Ω)
- Protection Schemes: Under-voltage, thermal, over-current, high frequency
- Idle Power: 3 watts per module
- Start-up: Soft start, mute/de-mute
- Weight: 280 lbs each
- Dimensions (HxWxD, inches): 70 x 17.5 x 14.75
