SVS Prime Pinnacle Floorstanding Speaker (Pair) In-Stock Next day Shipping

  • Sale
  • Regular price $2,129.00
bread

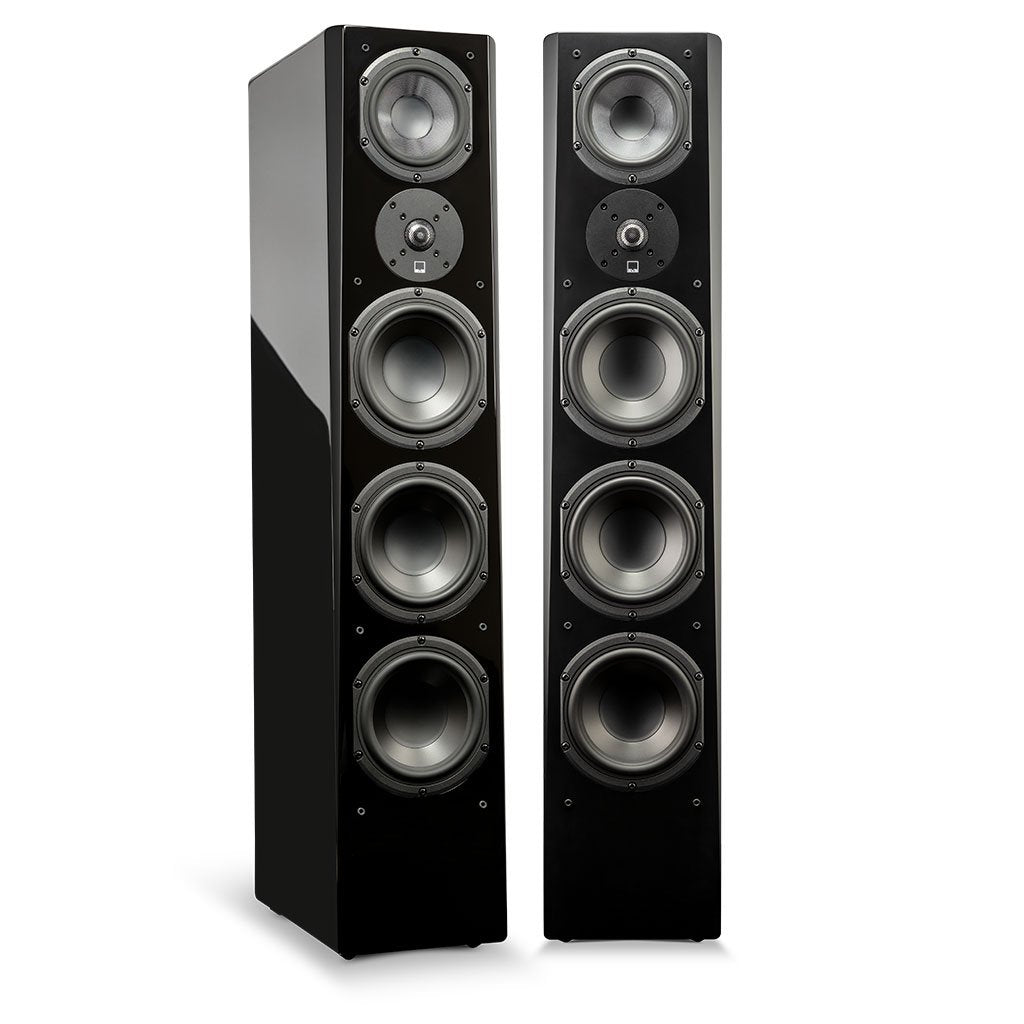

Prime Pinnacle

World-Class Audio for Everyone

The ultimate expression of what SVS sought to create with the Prime Series loudspeakers is epitomized in Prime Pinnacle. Audiophile refinement and musicality without sacrificing wide dynamic range, deep, effortless bass and all the excitement of a world-class loudspeaker.

SVS acoustic engineers spent more time voicing Prime Pinnacle than any speaker in SVS history, in large part to create a loudspeaker that was equally suited to meet the demands of both discerning audiophiles and hardcore home theater fans. To go even further, Prime Pinnacle’s cabinet design was made to blend seamlessly and sound amazing in any listening environment.

World-class performance in both a two-channel HiFi stereo or an immersive home theater surround sound system, Prime Pinnacle is unrivaled in its class and well-beyond.

Audiophile Refinement. Breathtaking Home Theater Dynamics.

Design innovations in the Prime Pinnacle speaker harness qualities both discerning audiophiles and home theater fans will delight over. All-new driver array is optimized for massive dynamics and incredibly refined output while the cost-no-object cabinet design and materials, sophisticated components and inspired acoustic engineering combine for a floorstanding speaker that stands alone at its price and well beyond.

All-New 5.25" Midrange Driver with Composite Glass-Fiber Cone

Delivers pinpoint accuracy and broad soundstage for more immersive audio experiences. The majority of audio content in music and movies is present in the midrange frequencies so it’s imperative to have a driver capable of producing slam and impact as well as subtle details with tonal accuracy. Prime Pinnacle’s midrange borrows design elements from the reference Ultra Series to deliver uncompromised audio performance at all drive levels.

Premium 1” Aluminum Dome Tweeter

Renders crystal clear highs with lifelike realism even at reference volume. Light, efficient and impervious to distortion, the tweeter’s airy’ presentation effortlessly reveals every sonic detail with pristine clarity and unerring accuracy. The FEA-optimized diffuser ensures broad dispersion for a wide and convincing soundstage with pinpoint on- and off-axis frequency response so everyone in your room is treated with the same amazing audio experience.

Trio of 6.5” High-Performance Woofers

Effortless low frequency output and impressive deep bass extension from three 6.5” woofers lays the sonic foundation for all audio content. Engineered to convey the full thrill and excitement of cinematic blockbusters yet refined enough to handle the pluck of a bass guitar string and subtlest musical details with convincing realism, Prime Pinnacle delivers an amazing full-range listening experience with all audio content. By using three smaller woofers, each with its own 2-inch port, the new floorstanding speaker effortlessly conveys low frequency output while maintaining a slim profile that fits in any room or system.

Three Unique Port Tuning Frequencies

Individual tuning frequencies and separate sub-enclosures for the trio of woofers epitomizes the no compromise design approach taken with Prime Pinnacle. This design ensures all drivers blend seamlessly together so you get silky-smooth transitions from the midrange driver to the woofers as well as accurate frequency response, amazing refinement and crisp speed in transients; all without sacrificing deep, room-energizing bass.

SVS SoundMatch 3-Way Crossover

Creates an expansive soundstage with accurate frequency response and precise imaging for largest “sweet spot” possible. The 3-way crossover is uniquely tuned so each driver, from tweeter to midrange and midrange to woofers, blend seamlessly with each other while offering excellent on and off-axis frequency response and pinpoint spatial imaging for the most convincing audio experience possible. The crossover’s topology and architecture are consistent with all SVS speakers so Prime Pinnacle is timbre matched to integrate with any speaker from the acclaimed Prime or Ultra Series for the ultimate flexibility when building a system.

Sonically Inert and Rigidly Braced Cabinet

Four self-contained, acoustically tuned internal chambers eliminate any potential for resonances or sonic artifacts from the enclosure, resulting in pristine audio playback across the frequency spectrum. Tapered edges on the Prime Pinnacle speaker’s front baffle, known as chamfers, minimize edge diffraction for a clear and precise soundstage while features like shorting rings and tweeter diffusers provide acoustic enhancements with modern, high-end visual appeal.

Lifestyle-Friendly Footprint

Fits seamlessly in any room layout or décor. Slim enough to place next to furniture or near a wall, yet spacious enough to produce effortless output and reference sound quality, Prime Pinnacle delivers jaw-dropping performances in stereo and home theater systems from a classically handsome tower speaker design.

Frequency Response / Acoustic Data:

  • Rated bandwidth: 29 Hz-25 kHz (±3 dB)
  • Nominal impedance: 8 ohms
  • Sensitivity: 88 dB (2.83V @ 1 meter full-space, 300-3kHz)
  • Recommended amplifier power: 20-300 watts

Speaker Specs:

  • Floor Standing Tower Loudspeaker

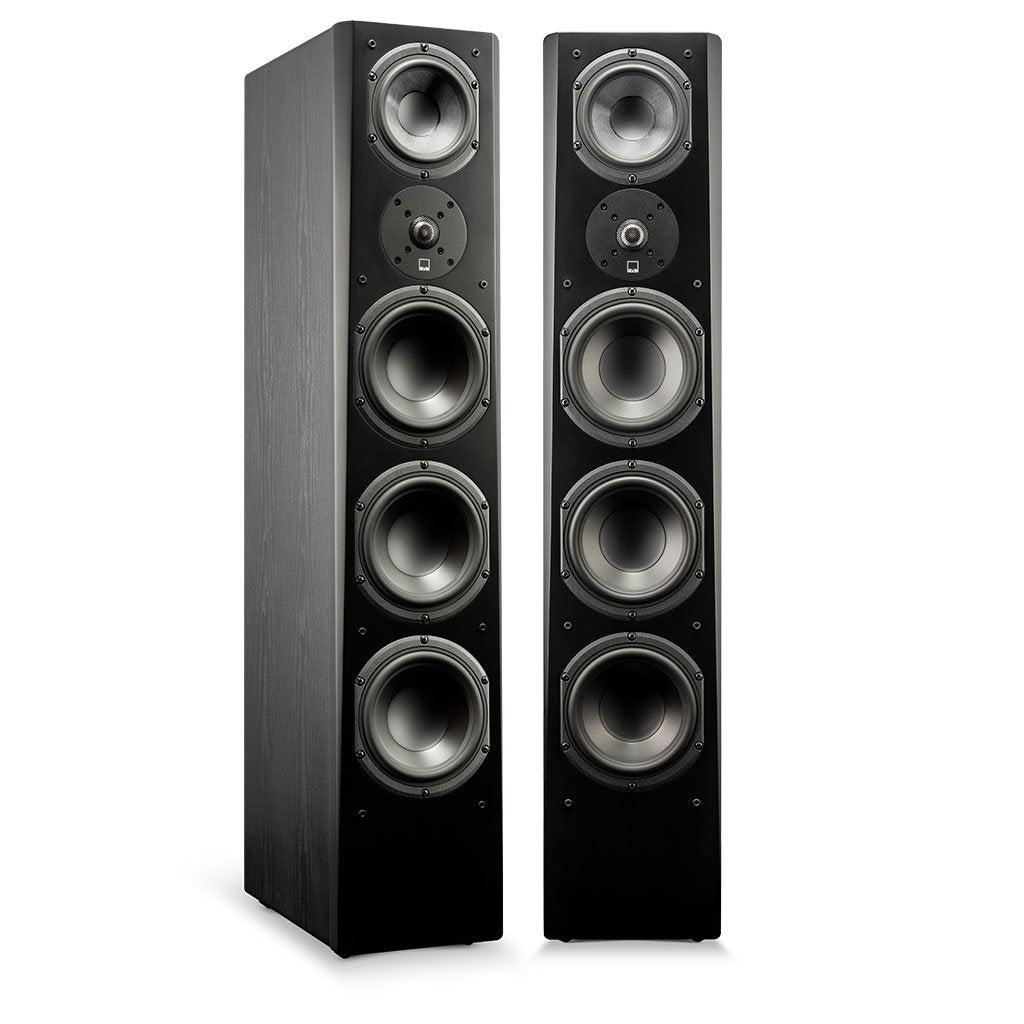

  • Black ash and piano gloss black finish options
  • 5-way binding posts
  • Triple 2” wide-flared rear-firing ports
  • Cloth grille with pin/cup retention system
  • Cabinet Dimensions: 40.5" (H) X 8" (W) X 13.4" (D)
  • Overall Dimensions: 41.1" (H) X 8" (W) X 13.9" (D) (includes grille, feet and binding posts)
  • Weight Packaged: 66 lbs (29.9 kg)
  • Weight Unboxed: 57.1 lbs (25.9 kg)

Driver Specs:

1” Aluminum Dome Tweeter:

  • FEA-optimized diffuser for airy and unveiled presentation
  • Aluminum dome for exceptional transient response

Triple 6.5” Woofers:

  • Long stroke motor and suspension for high output
  • Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
  • Vented voice coil former minimizes air compression artifacts

5.25” Midrange Driver:

  • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
  • Vented voice coil former minimizes air compression artifacts

Crossover & Cabinet Specs:

Crossover:

  • 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
  • 2-piece PCB design reduces component interference
  • Tweeter-to-Midrange crossover: 2.1kHz (12 dB/octave slopes)
  • Midrange-to-Woofer crossover frequency: 300Hz (12 dB/octave slopes)

Cabinet:

  • Separate sealed midrange enclosure with angled bracing diffuses and shifts standing waves beyond the driver pass band, improving sound quality
  • Three separate woofer enclosures with optimized port tuning frequencies for smooth and accurate bass response
  • Acoustically transparent and FEA optimized grilles minimize diffraction
  • Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
  • FEA-optimized cabinet and angled bracing eliminates resonances and improves cabinet rigidity for acoustically inert enclosure
