Silhouette Center


Please call us at 416.821.4723 for pricing & availability or

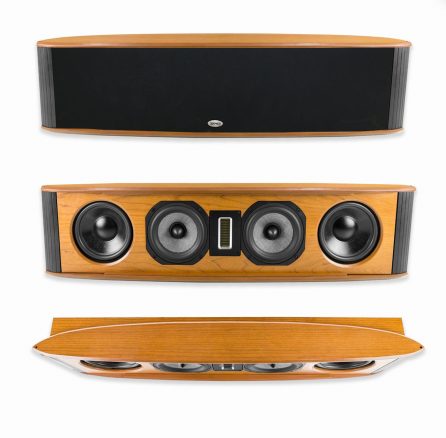

The perfect mate to the Silhouette mains, the elegantly styled Silhouette Center provides no compromise performance in an artful 5.125" deep on wall / in wall design. The profile appears even thinner due to the anti-diffractive contoured edges. The robust driver complement and special electrical network yield the optimum response at the listening position. The result is a speaker that does not sound like an on-wall with staging beyond the wall.

  • Zero footprint and solid cabinetry build
  • Deep soundstage
  • Excellent sound quality for music and movies
  • Gorgeous wood veneers with top quality construction.

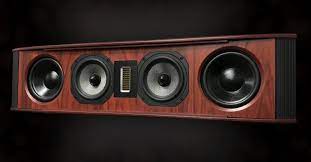

On-wall speakers are often dynamically challenged, especially in the lower octaves. This isn't the case with the Legacy Silhouette Center. It provides top-to-bottom performance with plenty of slam. The three-way design features two 8" mass loaded radiators to lay the foundation supporting two high acceleration 7" silver/graphite midrange drivers. Treble remains clear and airy from the 4" Legacy AMT ribbon, boasting a high-temperature pleated Kapton diaphragm and neodymium motor.

The internal crossover divides the spectrum precisely where the wall boundary creates a strong dip in the response of conventional speakers. This compensation in the electrical network allows for the appropriate response at the listening position. The result is a speaker that does not sound like an on-wall with staging beyond the wall.

French cleat mounting brackets make for quick installation on the wall surface.

Specifications:

Application: Low-profile wide range on-wall center

System Type: 3 driver, 2 way

Tweeter: 4" AMT folded ribbon

Midwoofer: Dual 7" Silver/Graphite, cast frame

Passive Radiator: Dual 8" mass loaded radiators

Low Frequency Alignment: Assisted B6

Inputs: 1 pair binding post, recessed cup

Recommended Amplification: 15-250 Watts

Freq Response (Hz, +/-3dB): 55-28k

Impedance: 4 Ohm

Sensitivity: 92 dB (2.83V @ 1m)

Crossover Frequency (Hz): 2.5k

Dimensions (HxWxD, inches): 10.375 x 43.1875 x 5.25

Weight: 56 lbs each

Shipping Dimensions: 49" x 20" x 16"

Shipped Weight:  74 lbs
