Silhouette


Please call us at 416.821.4723 for pricing & availability or

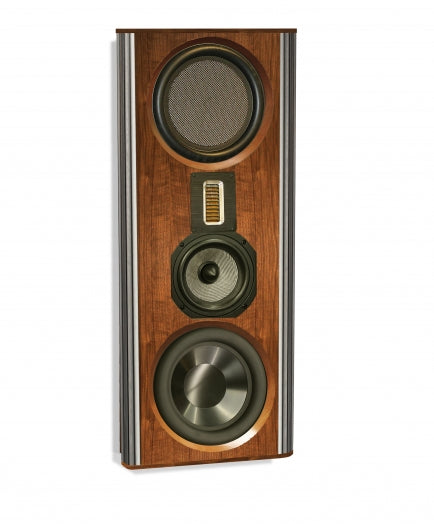

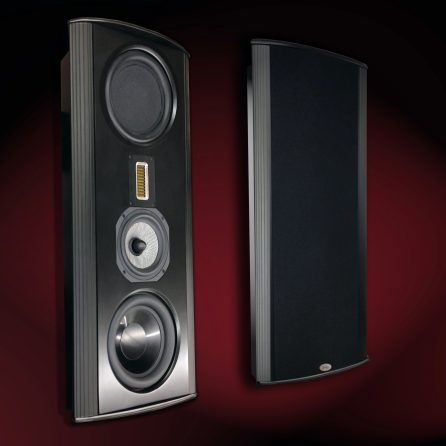

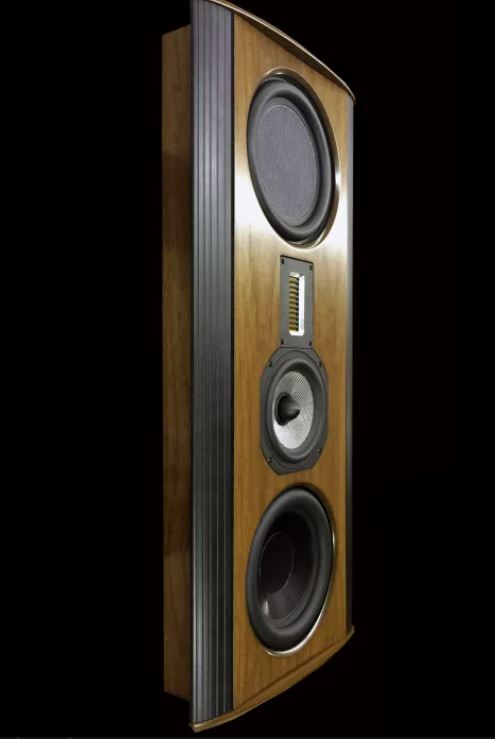

The elegantly styled Silhouette, from Legacy Audio, provides no compromise performance in an artful 5.125" deep on wall / in wall design. The profile appears even thinner due to the anti-diffractive contoured edges. The robust driver complement and special electrical network yield the optimum response at the listening position. The result is a speaker that does not sound like an on-wall with staging beyond the wall.

On-wall speakers are often dynamically challenged, especially in the lower octaves. This isn't the case with the Legacy Silhouette. It provides top-to-bottom performance with plenty of slam. The three-way design features a newly engineered 10" low-profile long-excursion woofer and pneumatically coupled radiator to lay the foundation supporting the high acceleration 7" silver/graphite midrange. Treble remains clear and airy from the 4" Legacy AMT ribbon, boasting a high-temperature pleated Kapton diaphragm and neodymium motor.

The internal crossover divides the spectrum precisely where the wall boundary creates a strong dip in the response of conventional speakers. This compensation in the electrical network allows for the appropriate response at the listening position. The result is a speaker that does not sound like an on-wall with staging beyond the wall.

French cleat-mounting brackets make for quick installation on the wall surface.

The Legacy Silhouette is also available in the streamline Silhouette Pro version, for behind screen or in-wall applications. Please consult the manual for the various mounting options available to you.

Specifications:

Application: Low profile articulate full range main or side on-wall

System Type: 4 driver, 3 way

Mounting: Wall mount with bracket

Tweeter: 4" AMT folded ribbon

Midwoofer: 7" Silver/Graphite woven diaphragm, cast basket, phase compensation plug

Bass: 10" long throw low-profile motor

Passive Radiator: 10" mass loaded pneumatic

Low Frequency Alignment: Assisted B6

Inputs: 1 pair binding post, recessed cup

Recommended Amplification: 25-300 Watts

Freq Response (Hz, +/-3dB): 42-28k

Impedance: 4 Ohm

Sensitivity: 92 dB (2.83V @ 1m)

Crossover Frequency (Hz): 250, 2.5k

Dimensions (HxWxD, inches): 36.5 x 16.5 x 5.125 each

Weight: 54 lbs each

Boxed Dimensions (HxWxD, inches): 43 x 22 x 22 per pair

Shipping Weight: 155 lbs per pair
