SIGNATURE SE


Please call us at 416.821.4723 for pricing & availability or

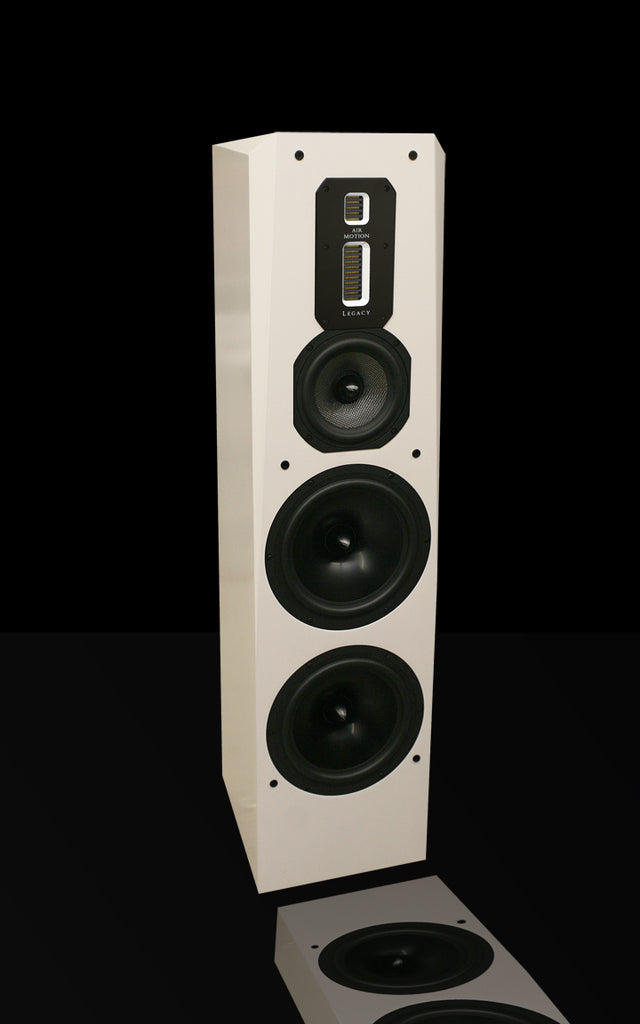

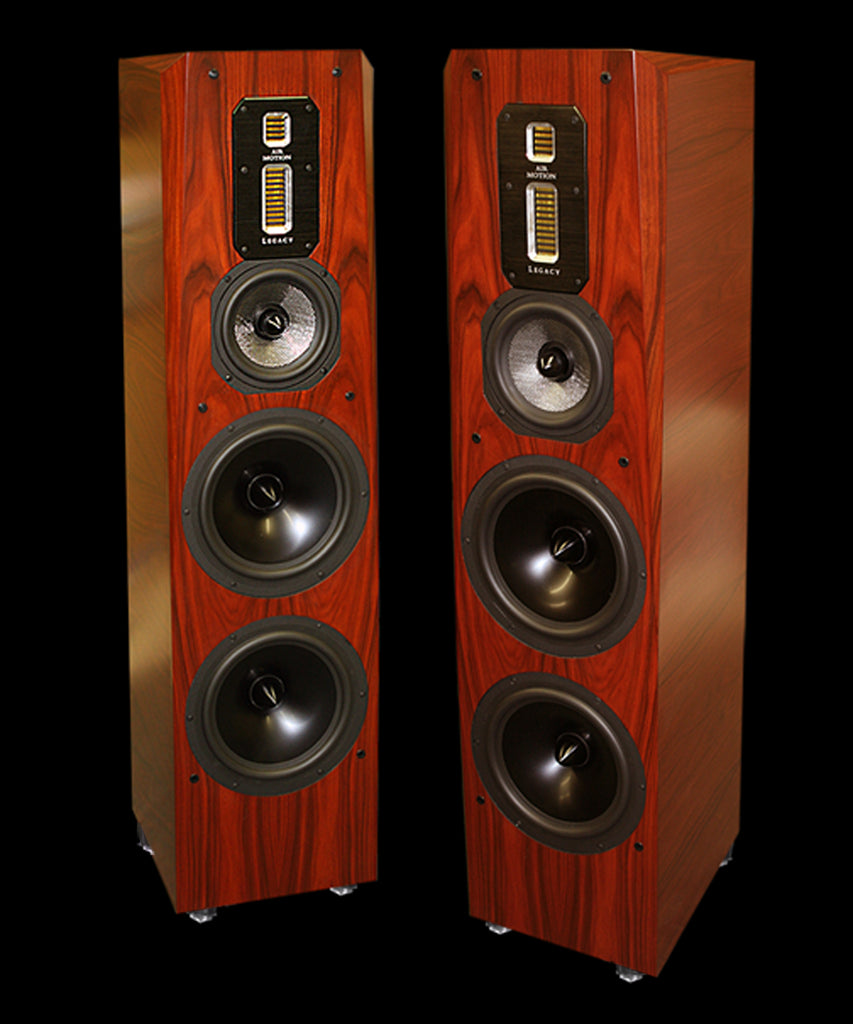

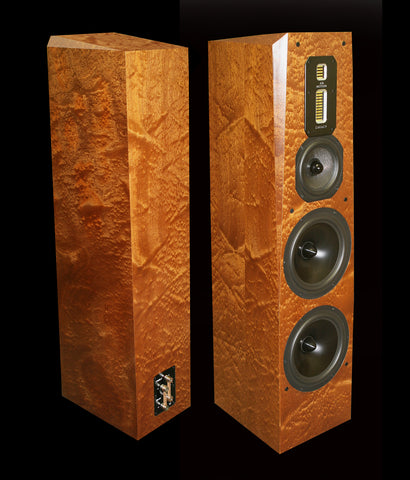

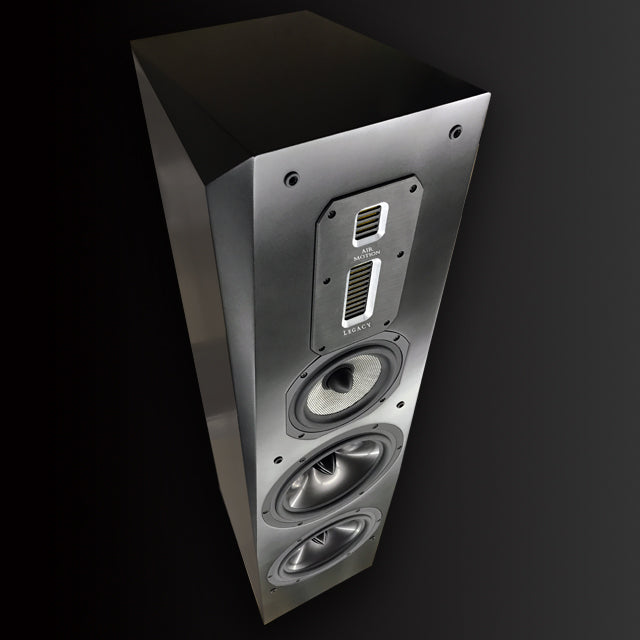

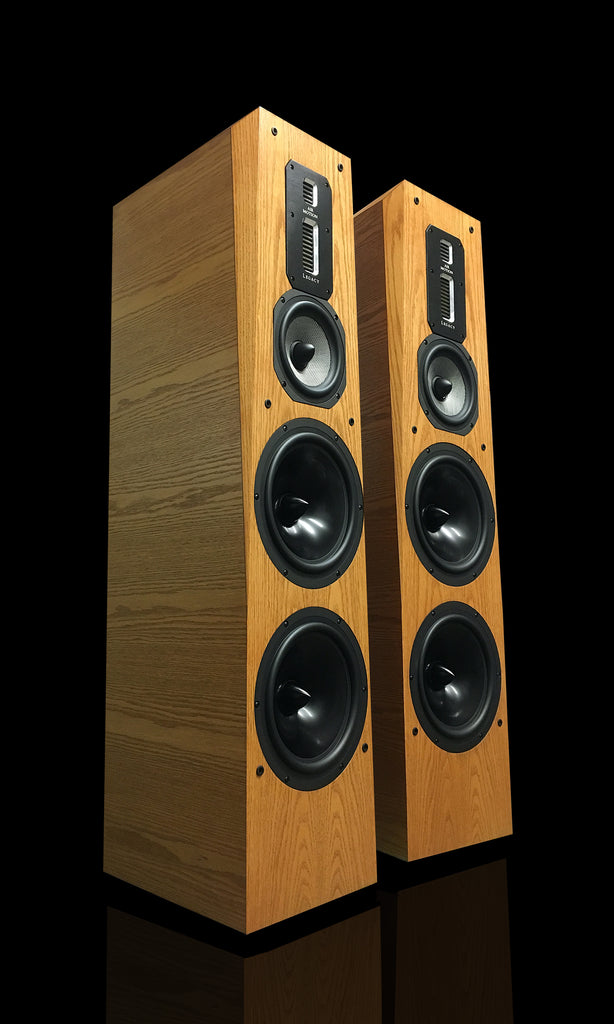

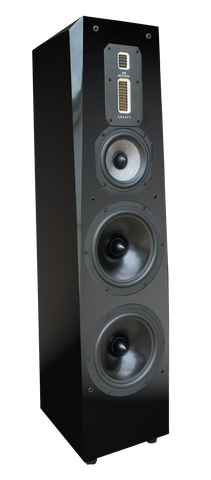

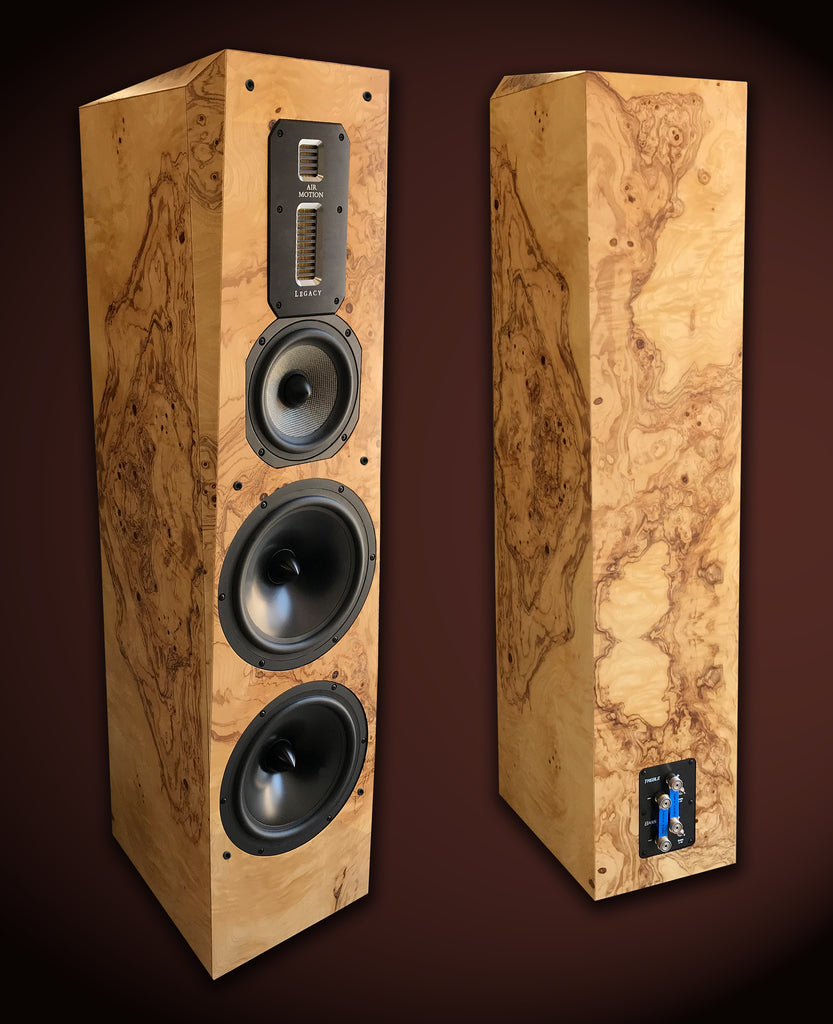

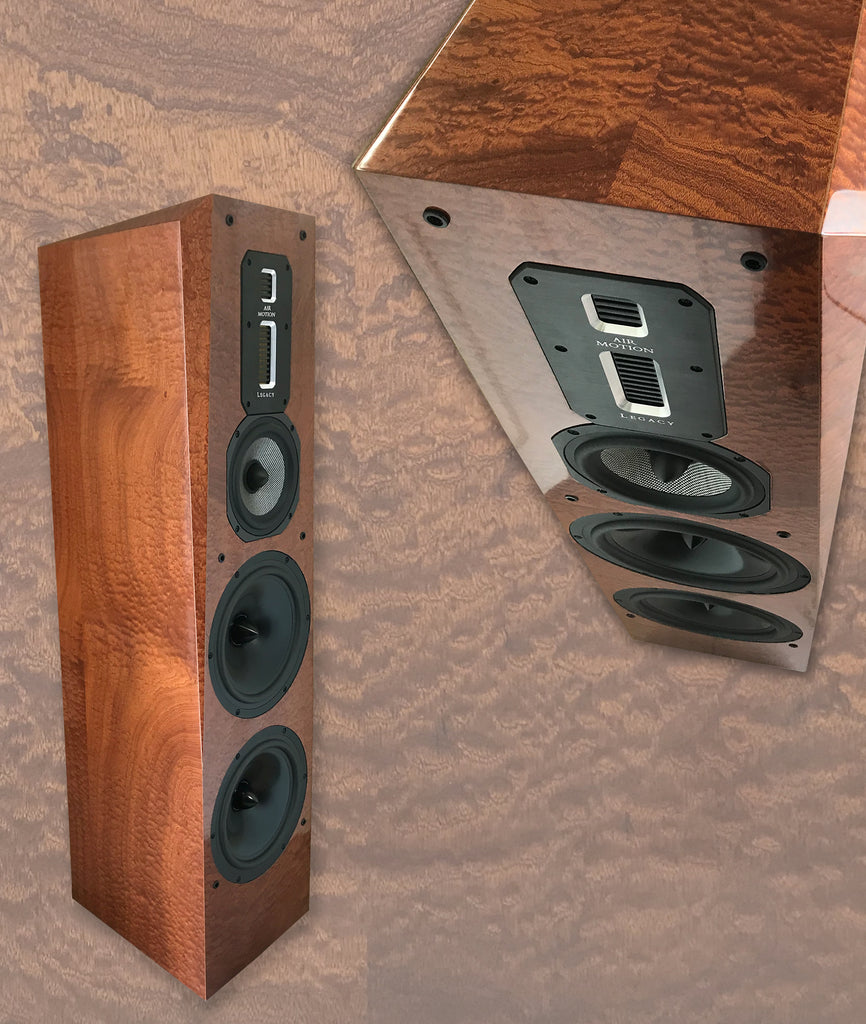

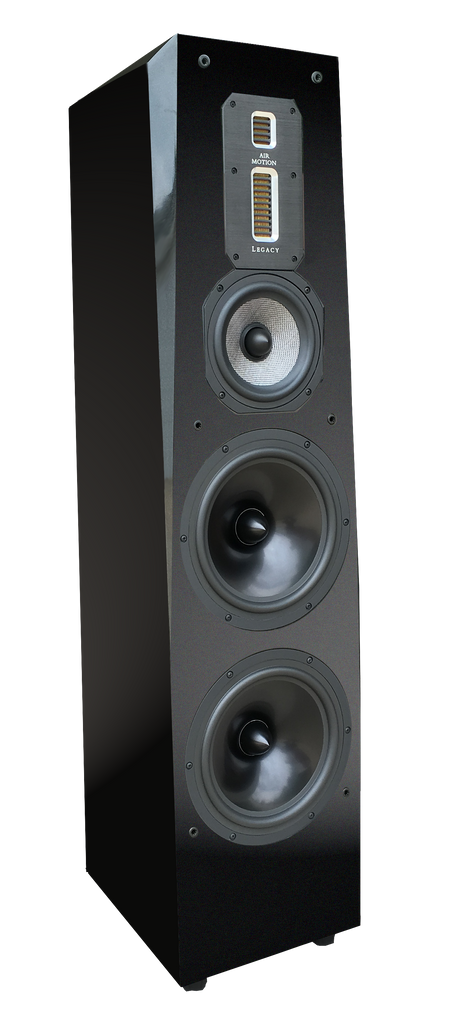

SIGNATURE SE

Renowned Legacy performance in a more compact size- the Signature SE is perfect for both stereo and home theater applications.



Application: Sealed enclosure, low sensitivty to room placement
System Type: 5 driver, 4 way

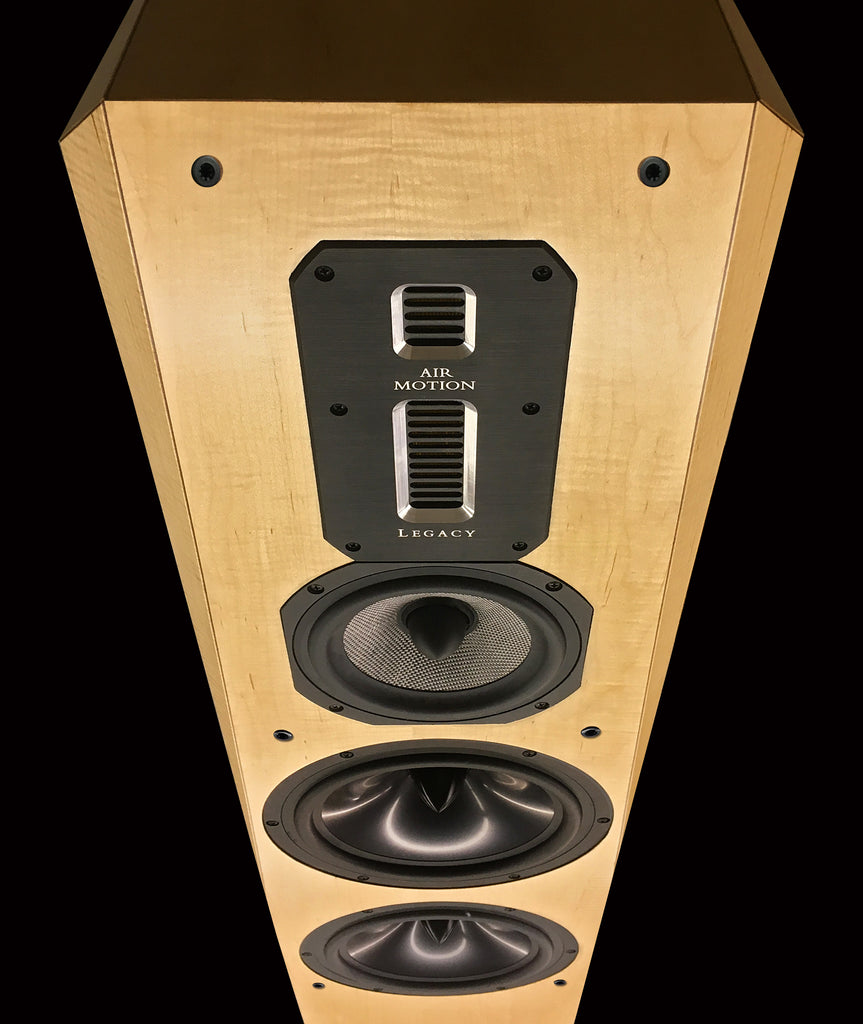

Tweeter: Dual Air Motion Tweeter System- 1" AMT super tweeter, silver HF wire
Midrange: Dual Air Motion Tweeter System- 4" AMT tweeter
Midwoofer: 7" Silver Graphite, cast frame
Subwoofer: Dual 10" spun aluminum diaphragm, rubber surround, long throw suspension with cast frame
Low Frequency Alignment: Sealed, adjustable damping
Inputs: 2 Pair binding posts for Treble and Bass
Recommended Amplification: 20 - 300 Watts
Freq. Response (Hz, +/-2dB): 22-30K
Impedance: 4 Ohm
Sensitivity: 92 dB (2.83V@ 1m)
Crossover (Hz): 180, 2.8K, 8K
Dimensions HxWxD (inches): 48 x 12 x 13.75
Weight (each): 106 lbs
Shipping Weight (each): 147 lbs

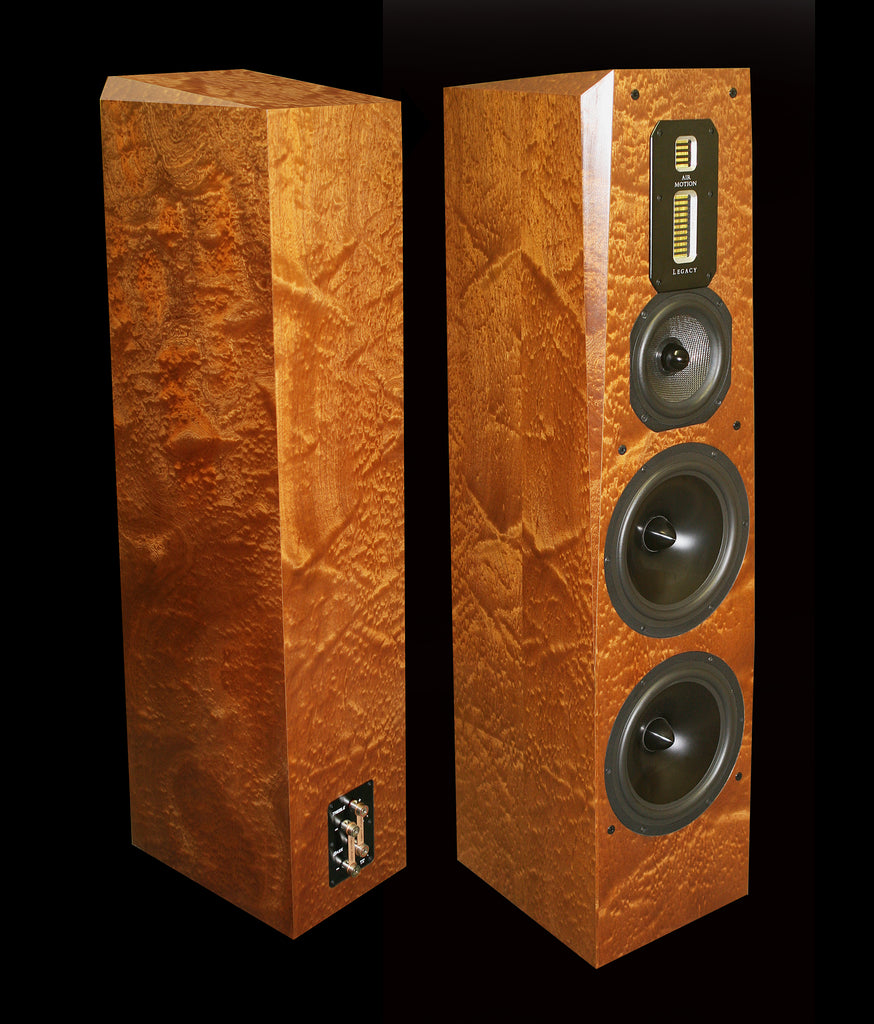

Available Finishes:
