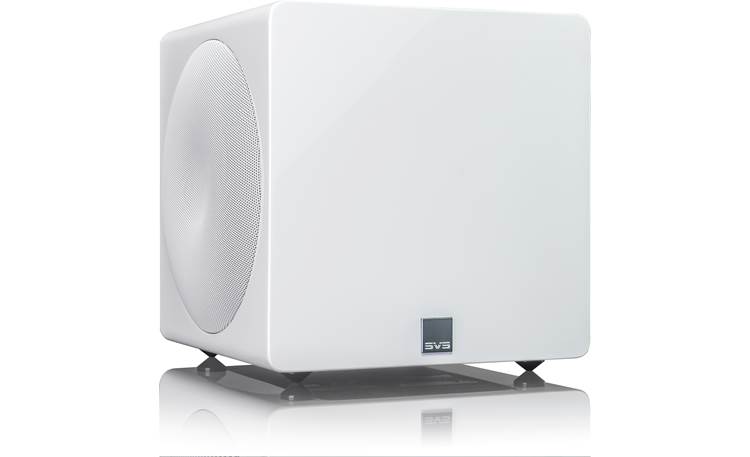

3000 Micro Subwoofer
Reference Subwoofer Performance Just Went Micro.Chest-pounding, musical bass with depth, slam, and impact, from a shockingly compact 10-inch cabinet. Many micro subwoofers have tried, all have failed. Until now. The miniature yet mighty SVS 3000 Micro subwoofer seamlessly blends into any room and speaker system, energizing the space with astonishingly rich, effortless bass that’s all the more impressive given its micro-sized enclosure.
Featuring innovations from the reference SVS 16-Ultra subwoofers married to fully active dual opposing 8-inch drivers, and an 800 watt RMS, 2,500 watt Peak Power Sledge STA-800D2 amplifier with discrete MOSFET output, 3000 Micro delivers performance that obliterates every micro subwoofer that has come before. It also features the powerful SVS subwoofer control smartphone app for advanced tuning and DSP. Finally, a micro subwoofer worthy of the name SVS.
Dimensions (including grilles): 10.9” (278mm) H X 11.7” (297mm) W X 10.7” (271mm) D
Weight: 22.5lbs (10.2kg)
Packaged Dimensions: 13.9” (353mm) H X 15.4” (390mm) W X 15.4” (390mm) D
Packaged Weight: 26.7lbs (12.1kg)
Dual opposing 8-inch active drivers designed acoustically and electrically in parallel
800-watt RMS, 2,500-watt peak Sledge STA-800D amplifier with fully discrete MOSFET output
- Rear-mounted internal amplifier with Intelligent Control Interface (ICI)
- High-end Piano Gloss Black and Piano Gloss White finish options
- Screw-in rubber feet
- Structurally reinforced MDF cabinet construction
- Dual opposing 8-inch drivers designed electrically and mechanically in parallel for massive output from and a sonically inert cabinet, and ultra-low system vibration even at maximum output levels
- Precisely tuned overhung motor configuration for precise woofer control at all drive levels
- Proprietary injection-molded NBR surround built for extreme-excursion and longevity at reference playback levels
- Total Excursion (each driver): 24mm Xmax, 37mm Xmech.
- 1100 aluminum single piece cone and junction provide excellent stiffness and a lightweight moving mass with optimized thermal conduction.
- High-current 4-layer copper voice coil winding minimizes distortion and power compression, while providing effective heat dissipation and tuned magnetics for accuracy at high excursion.
- Powerful proprietary ferrite motor system generates high-flux-density magnetic fields to drive room-filling sound pressure levels with pinpoint transient speed.
- Precision machining for motor and narrow tolerance suspension parts maintain control and linearity at full excursion
- 6061 aluminum shorting ring improves linearity of magnetics and reduces distortion and gap inductance
- High-temperature 5025-H18 aluminum former/bobbin
- 5-inch composite poly-cotton extreme-linear-excursion spider
- Dual 24-strand plated copper leads
- High-performance oversized Y30 Ferrite magnet motor
- Top plate assembly with low carbon 1010 steel completes the driver’s precision magnetic circuit
- Oversized low carbon 1010 steel U-yoke for maximum cooling
- Dual 8-inch baskets with FEA optimized powder-coated frames for maximum rigidity, thermal conductivity, and mechanical damping
- Effortless on-demand power from 800-watt RMS, 2,500-watt peak Sledge STA-800DM amplifier with fully-discrete MOSFET output
- High-efficiency Class-D switching topology with massive 25-amp 600-volt MOSFETs results in ample current, vanishing distortion and excellent linearity to generate massive low-frequency output with pinpoint accuracy
- High-resolution 50MHz Analog Devices Audio DSP with double precision 56-bit filtering industry best processing power for advanced control and pristine output
- User adjustable settings for system performance optimization: low pass filter, phase, polarity, room gain, and three parametric equalizers
- Groundbreaking SVS subwoofer DSP and Bluetooth smartphone control app for iOS, Android and Amazon devices allow custom tuning and user presets for every room and system
- Stereo RCA input and output with ultra-wide input voltage for consumer and professional audio applications
- Rear panel Intelligent Control Interface (ICI) user interface with blue-LED light bar display and easy push-button controls
- Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience
- Input impedance 16 kΩ (unbalanced RCA)
- Environmentally-friendly 0.5-watt low-standby-power consumption
- RoHS compliant, lead-free construction, world-wide safety certifications
SVS App Specs:
- Powerful Bluetooth-controlled subwoofer DSP app works with iOS, Android, and Amazon operating systems
- Provides easy and convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass-management functions
- Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat
- Bidirectional-feedback shows adjustments in real time on both app and subwoofer rear panel interface
- Dual protective non-resonant steel mesh grilles
- Isolating elastomer feet
- Heavy-duty, high-current 6-foot power cord
- Quick Start Guide
Well rounded subwoofer, I especially like the size of the unit, smaller than my KEF sub (V-20W) and much better performing. The LFE/ bass range is amazing especially with movies. The sound quality is clean without a blip of struggle in performance.
Great product, easy to set up, awesome base sound.
I like this sub very much. Very accurate and deep response for my purpose (music listening). I like the app. I can adjust all the parameters from my seat. This is a great value sub. The only issue is that the sub creates very high pitch sound (seemingly from the board inside the sub not from speakers). This is noticeable if you seat close to the sub if the room is very quite (given that you have a very sensitive ear like me). I searched on internet and people suggested that if I connect a usb device to the sub (there is a usb charger port at the back of the sub) the noise will go away. I tried it work for me. I’m happy overall with this sub and I know that I have a good warranty with it. So no sweat. When I changed my old sub (KEF Q400) to this, I can clearly see the difference. More accurate, deeper, less hum, and overall I can hear my music better. On a separate note, the dealer was a really nice and friendly person. I enjoyed dealing with him
Second SVS sub purchase and it’s always a pleasure dealing with Aamir. What a pro!
Great sound from that little sub. Completes my office desk 2 channel setup to perfection! Thank you so much Aamir for your great suggestion!
