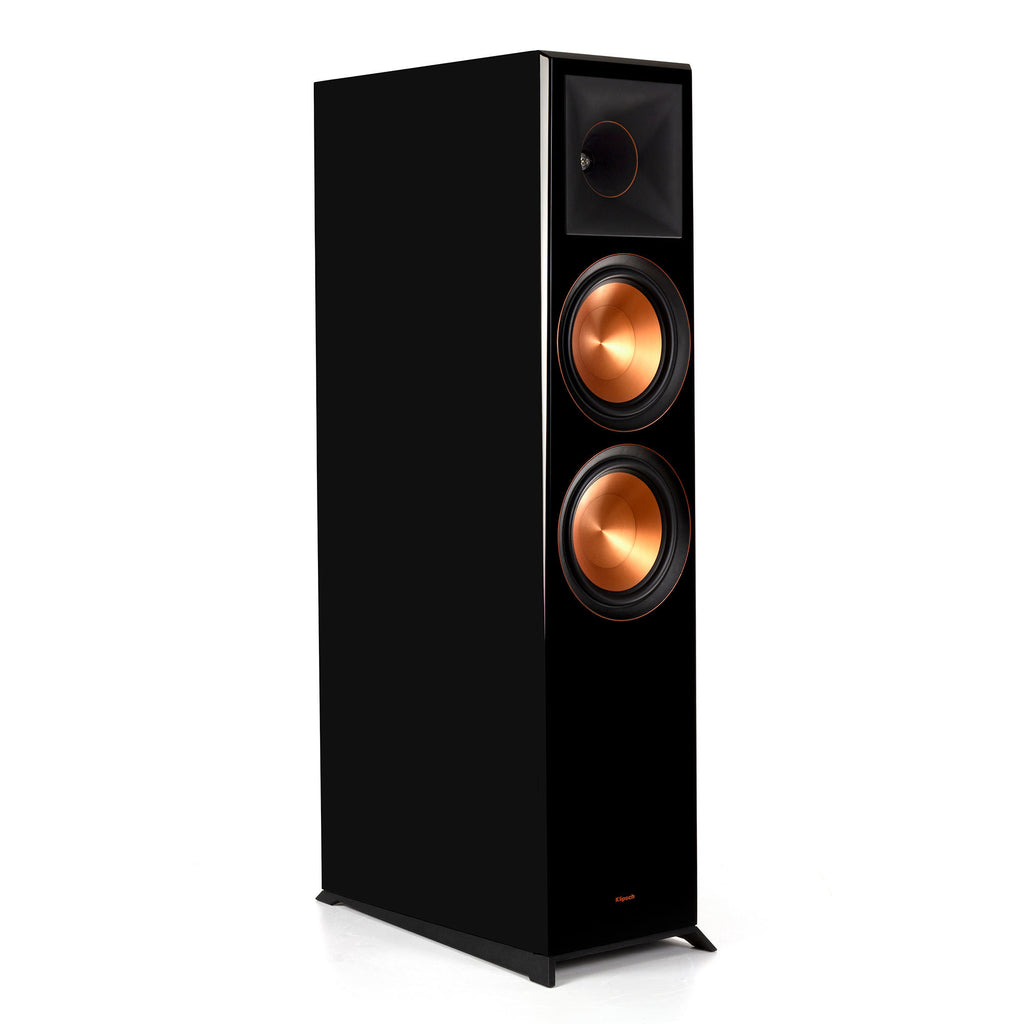

RP-8060FA II

bread


The Reference Premiere RP-8060FA Dolby Atmos® enabled floorstanding speaker includes a built-in elevation channel speaker integrated into the top of the speaker to reflect sound off the ceiling to deliver the overhead Dolby Atmos® experience in addition to stereo sound towards the listener.

Features:

  • Built-in Elevation Channel for Dolby Atmos®
  • 1” Titanium LTS Vented Tweeter with Hybrid Tractrix® Horn
  • Main Channel: 8" Spun Copper Cerametallic™ Woofers
  • Height Channel: 6.5" Spun Copper Cerametallic™ Woofer
  • Bass-Reflex via Rear-Firing Tractrix® port
  • Dual binding posts for bi-wire/bi-amp
  • Strong, Flexible Removable Magnetic Grille
  • Dimensions: 43.12” x 10.90” x 19.80”

SPECIFICATIONS - MAIN CHANNEL

FREQUENCY RESPONSE: 35-25kHz +/- 3dB

SENSITIVITY*:  98dB @ 2.83V / 1m*

POWER HANDLING (CONT/PEAK):  150W / 600W

NOMINAL IMPEDANCE: 8 Ohms Compatible

CROSSOVER FREQUENCY: 1630Hz

HIGH FREQUENCY DRIVER: 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn

LOW FREQUENCY DRIVER: Dual 8” Cerametallic Cone Woofers with Faraday rings

ENCLOSURE MATERIAL: MDF (Internally Braced)

ENCLOSURE TYPE: Bass Reflex via dual chamber rear-firing Tractrix® Ports

INPUTS: Dual aluminum binding posts / bi-wire / bi-amp

HEIGHT INCHES (MM): 43.11" (109.5 cm)

WIDTH INCHES (MM): 10.84" (27.5 cm)

DEPTH INCHES (MM):20.80 (52.8 cm)

PRODUCT WEIGHT LBS (KG) 75.7 lb (34.35kg)

FINISH: Ebony, Walnut

INCLUDED ACCESSORIES Injection molded feet & screws

  *SPL at 1M, half-space anechoic with 2.83V input, in-room sensitivity

SPECIFICATIONS - HEIGHT CHANNEL

FREQUENCY RESPONSE: Conforms to Dolby Atmos Specifications

SENSITIVITY: Conforms to Dolby Atmos Specifications

POWER HANDLING: 100W / 400W

NOMINAL IMPEDANCE: 8 ohms Compatible

CROSSOVER FREQUENCY: 2kHz

HIGH FREQUENCY DRIVER: 1" Titanium LTS Tweeter with Hybrid Tractrix Horn

LOW FREQUENCY DRIVER: 6.5" Cerametallic Cone Woofer

ENCLOSURE MATERIAL: MDF

ENCLOSURE TYPE: Acoustic Suspension

INPUTS: Single aluminum binding posts
