$199.00

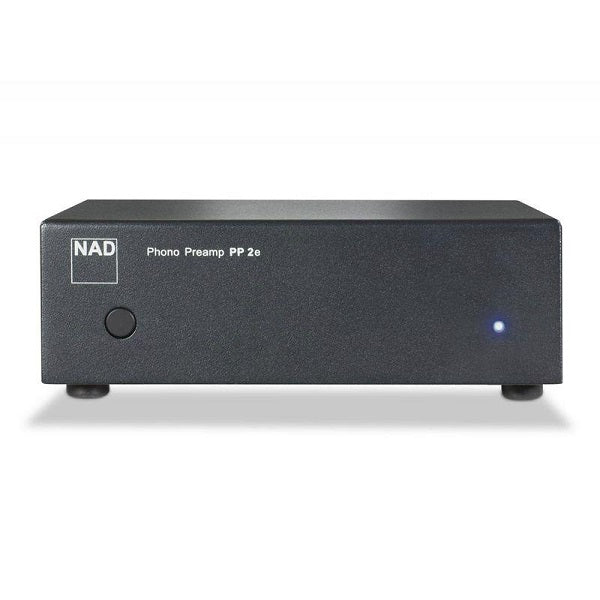

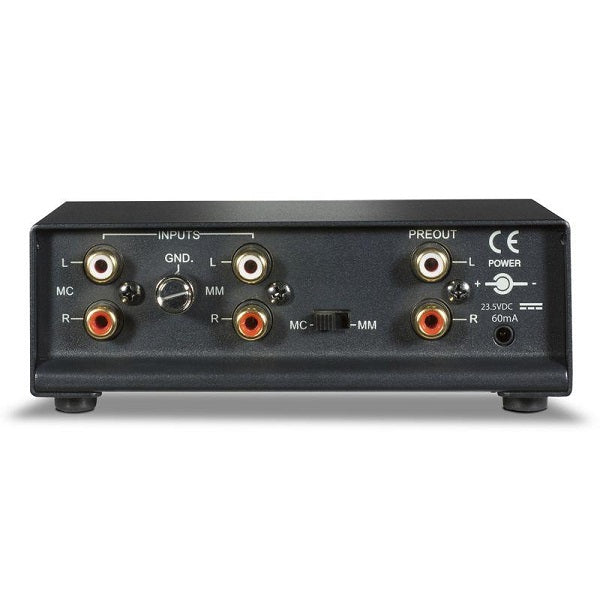

The PP 2e Phono Preamplifier offers superb performance in a clean and simple package. Perfect for the budget-conscious audiophile, the PP 2e’s moving coil/moving magnet input selector provides different phono cartridge options. This allows the PP 2e to be paired with any turntable, giving consumers unlimited choice in building their system. The PP 2e’s Auto Power Down feature saves energy by automatically powering the PP 2e to OFF when not in use. Built to be the best companion to one’s turntable setup, the PP 2e breathes life back into the vinyl you love.

  • Low noise, wide band MM & MC phono stage
  • Connect your turntable to almost all amplifiers and receivers
  • External 24 volt power supply
  • Gold plated input sockets
  • High quality components
  • LED power indicator

MC

Input Impedance (R and C)                    100 Ohm + 180pF

Gain at 1kHz                                          60dB

Input Sensitivity (ref. 200mV output)   0.3mV

Signal to Noise Ratio                              78dB (A weighted, with cartridge connected)

Input Overload (20Hz/1kHz/20kHz)     0.8/9/84mV

Rated Distortion (THD 20Hz – 20kHz)    <0.03%

RIAA Response Accuracy                      ±0.3dB

MM

Input Impedance (R and C)                     47 kilohm + 200pF

Gain at 1kHz                                           35dB

Input sensitivity (ref. 200mV output)    2.5mV

Signal to Noise Ratio                             80dB (A weighted, with cartridge connected)

Input overload (20Hz/1kHz/20kHz)      10/102/950mV

Rated Distortion (THD 20Hz – 20kHz)    <0.03%

RIAA response accuracy                       ±0.3dB

LINE OUT

Output Impedance                                 100 Ohm

Maximum Output Level                          5.3V

GENERAL SPECIFICATIONS

AC Supply

External                                                   23.5V DC

Dimensions excl. Power supply (W x H x D)      135 x 49 x 72mm
5 5/16 x 1 15/16 x 2 7/8″
