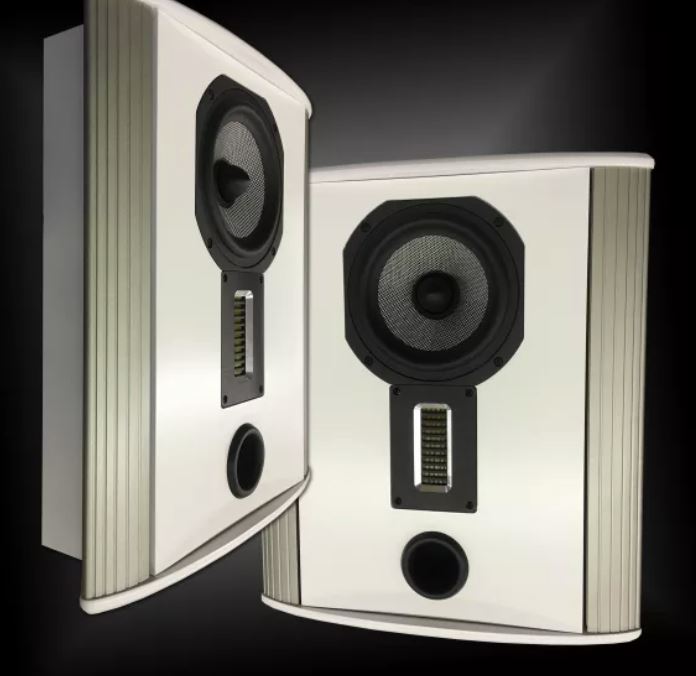

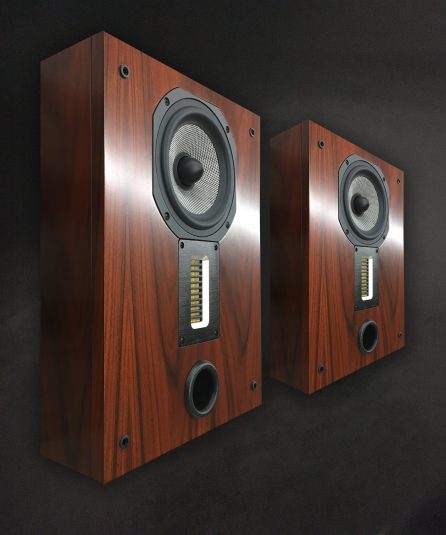

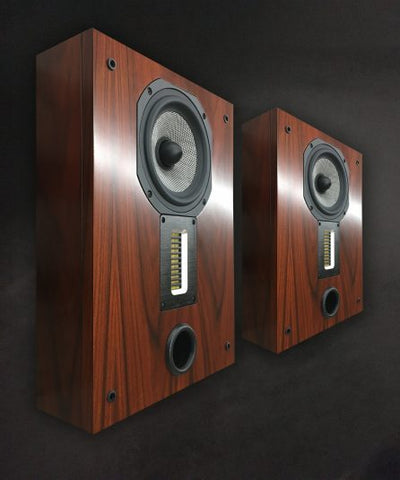

Pixel


Please call us at 416.821.4723 for pricing & availability or

Looking for incredible performance from your two channel or surround system, but short on floor space? The Legacy Pixel is the most compact Legacy on wall/ in wall speaker. It delivers superb frequency response from 60Hz-28kHz making it perfect for surround sound, Dolby Atmos and even left and right channel duties in a two channel system.

Pixel features the Legacy 4” high velocity AMT- the same driver found in our Dual AMT featured in the flagship Legacy speakers, to deliver a fully extended and airy top end. The Pixel’s 7” Silver/Graphite cast frame midrange with an acoustically coupled port is the same as our legendary Focus SE speakers, and provides excellent midrange clarity.

Hanging Pixel on your wall is as easy as hanging a picture, thanks to the included aluminum bracket concealed by the cabinet body.

Pixel seamlessly matches with other Legacy floor standing speakers in the surround sound system and is an excellent alternative to Studio HD when stands are not an option, but high quality audio for picture and music is a necessity. To complement its performance capabilities, the Pixel's elegantly designed cabinetry is available in a variety of finishes, allowing it to discretely fit in with any décor.

Pixel can also be ordered as the streamline Pixel Pro or with an oversized front baffle, allowing it to be mounted inside the wall. Please consult the manual for the various mounting options available to you.

Specifications:

Application: Low profile articulate full range main or side on-wall

System Type: 2 driver, 2 way

Mounting: Wall mount with bracket

Tweeter: 4" AMT folded ribbon

Midwoofer: 7" Silver/Graphite woven diaphragm, cast basket, phase compensation plug

Low Frequency Alignment: B4 reflex, ported

Inputs: 1 pair binding post, recessed cup

Recommended Amplification: 25-200 Watts

Freq Response (Hz, +/-3dB): 60-28k

Impedance: 4 Ohm

Sensitivity: 90 dB (2.83V @ 1m)

Crossover Frequency (Hz): 2.5k

Dimensions (HxWxD, inches): 18.875 x 16.625 x 5.2

Weight: 31 lbs each

Shipping Weight: 70 lbs per pair
