Highly Accurate CD Transport with Sampling Rate Converter
The NuPrime CDT-10 is the ultimate professional music CD transport with powerful DSP-based decoder that provides all Red Book error-correction capabilities with master-clock control of the entire decoding system, thus lowering jitter significantly. The transport’s single speed minimizes vibration and unbalanced discs. A selectable sampling rate converter (SRC) up samples the CD format to higher sampling rate with ultra-low jitter and distortion.
CDT-10 Design Philosophy & CDT-8 Pro Comparison
CDT-10 extends the exceptional digital design of CDT-8 Pro with enhanced AC noise filter (inherited from Evolution DAC) and power circuit. But to be considered as the ultimate CD transport, CDT-10 design philosophy is to minimize every possible mechanical vibration. The CDT-10 chassis design has similar structural integrity as a submarine (tubular structure with vertical & longitudinal rigidness) evenly distribute vibration. The transport mechanism is further sandwiched with aluminum plates to reduce vibration.
Features:
Highly Accurate CD Playback
- A powerful ARM chip LPC2103F CD reads, writes and controls error correction
- Philips SAA7824HL high-end laser reads/writes head control and decodes chips
- Supports CD-DA CD-R, CD-RW
- Algorithm reduces digital interference resulting in extremely low jitter
- Coaxial output with a dedicated isolation transformer
- Low jitter I2S output for professional use
Sampling Rate Converter
- The sampling rate of CD playback can be up sampled to PCM and DSD, from 44.1kHz to 768kHz or DoP256
- The conversion is achieved by up-sampling to mega hertz before down converting to the targeted sampling rate with ultra-low jitter and distortion
Power and Mechanical
- Custom R-type professional transformer with shielding
- Low power consumption in Standby Mode
- Isolation shielding of CD transport from electronics and power supply
- CD transport stabilizing design
- AC filter
- NuPrime vibration-free isolation feet
- High quality aluminium remote control
- Available in black or silver anodized aluminum finish
Specifications:

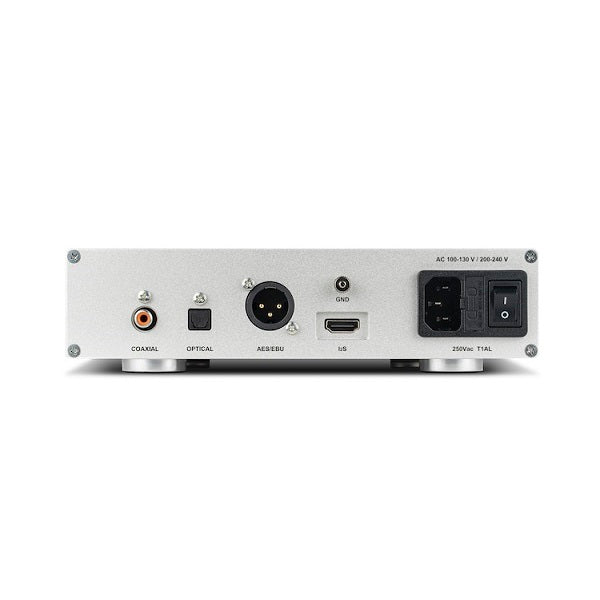

Outputs:
- Optical Output (up to 24 bits / 192 kHz) (DoP64)
- Coaxial Output (up to 24 bits / 768KHz) (DoP256)
- HDMI I2S Output (up to 24 bits / 768KHz) (DoP256)
- AES / EBU Output (up to 24 bits / 768KHz) (DoP256)
*Note that the I2S output is for connecting with other NuPrime products and may not work with other devices.
General:
- Optical Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, DoP64
- Coaxial Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
- HDMI I2S Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
- AES / EBU Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
- Bit Resolution: 24-bits
- Dimensions: 215 mm W x 382 mm D x 59 mm H (including feet)
- Weight: 4.5Kg
- AC Fuse: Slow-blow, 1A, 250VA
- Worldwide AC voltage: 100VAC~240VAC
