NuPrime AMG PRA PreampNuPrime
Innovative Analog Preamp with 1M Ohm Input Impedance
The AMG PRA went beyond being a transparent preamp with 1M Ohm input impedance and the best analog source inputs. A user-selectable 4 stage “Active Low Frequency and Harmonic Gain” control gave it distinctive characteristics to enhance the speaker performance, a world-first in preamp design.

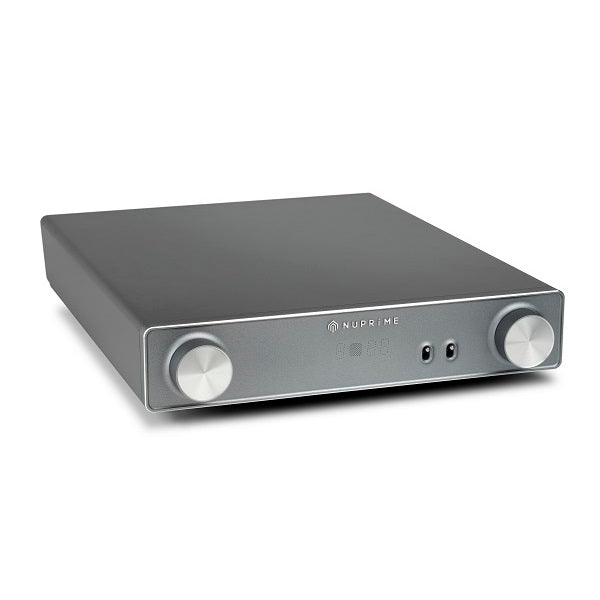

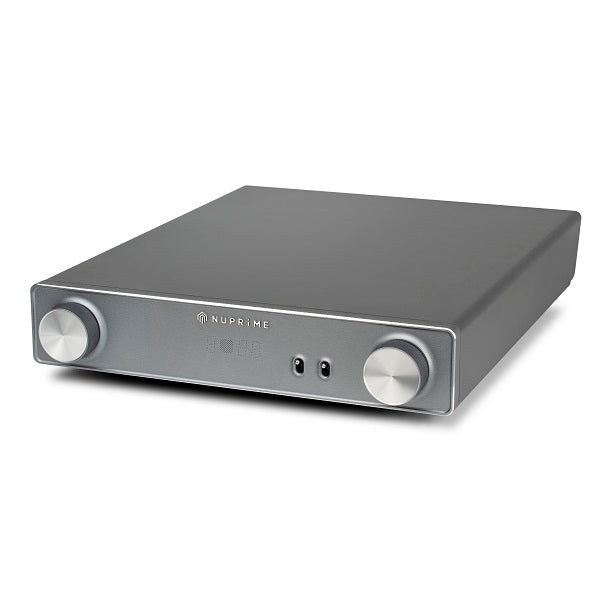

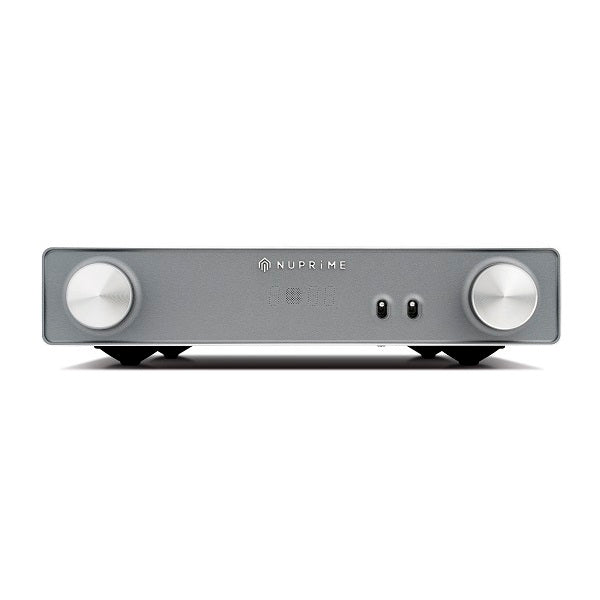

The AMG series front panel embodies its spirit. It is milled from a 15mm harden aerospace aluminum alloy using a four-axis CNC machine with a diamond cutter through a 48 steps process. Design elements such as the 3D “floating” logo, the curved surface around the front panel switch, and diamond-cut edge bring the quality of ultra-high-end audio products to the affordable range of the AMG series.
The design goal for AMG PRA was to deliver a transparent sounding analog preamp with its distinctive characteristics. Several new design concepts were developed and used in the AMG-PRE besides 1MΩ input impedance to achieve the best analog inputs.
Users of smallish speakers would often detect a distinct drop in bass response with some audio tracks. Instead of a simple “Bass Boost” function that lifts a targeted low-frequency band, a user-selectable 4 stage “Active Low Frequency and Harmonic Gain” control compensates for the lack of bass presence. It achieves some bass extension and a more natural roll-off.
Additional features such as the 2 stage gain control and invertible phase control increase the compatibility of the AMG-PRA with other power amplifiers.
The layout of the AMG-PRA takes excellent care in isolating the sensitive audio signals from the power circuitry. The power circuitry comprising of a star topology power and ground layers is built on one board while a separate board houses the pre-amplification circuit. An isolation layer separates these two boards, which further minimizes interference. The effect is a highly transparent sound that is natural and not over etched.
- Frequency Response: 10Hz to 200kHz; +-0 to -0.1dB
- THD: 0.008 %
- Input Impedance:
- Balanced IN: 1M Ohm @ 10 Hz ~ 200 kHz
- Line IN: 1M Ohm @ 10 Hz ~ 200K Hz
- Rated Output Voltage: 2 V (LINE) / 4V (BAL) @ 100 Ohm
- S/N: 95 dB
- Loudness Compensation:
- 2.2 dB (125 Hz)
- 4.5 dB (100 Hz)
- 5.3 dB (75 Hz)
- Gain : 3.2 (High) / 2.1 (Low)
