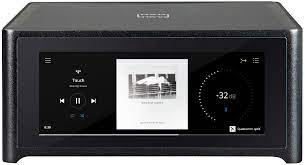

NAD M10 V2 BluOS Streaming Amplifier

  • Sale
  • Regular price $3,499.00


Description:

Like the original M10, the M10 V2 exemplifies the “Just Add Speakers” revolution in hi-fi. But it takes that revolution a giant step further. Along with audiophile-grade speaker terminals, it has two independent subwoofer jacks, whose output settings are adjustable from the BluOS app. The M10 V2 adds Dolby Digital surround-sound decoding. Home-theatre fans can configure a pair of BluOS surround-enabled wireless speakers or amplifiers to play the surround channels, while the main speakers handle the front channels, so that the M10 V2 serves as the hub of a 4.1- or 4.2-channel Dolby Digital surround setup. The M10 V2 transmits the rear channels wirelessly, with very low latency, so you don’t have to run wires around your room to connect the surround speakers.

Features:

AMPLIFIER SECTION

LINE INPUT, SPEAKER OUT

  • Continuous output power into 8 ohms and 4 ohms
  • >100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
  • THD (20 Hz – 20 kHz)
  • <0.03 % (250 mW to 100 W, 8 ohms and 4 ohms)
  • Signal-to-Noise Ratio
  • >85.1 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
  • Clipping power
  • >130 W (at 1 kHz 8 ohms 0.1 % THD)
    >230 W (at 1 kHz 4 ohms 0.1 % THD)
  • IHF dynamic power
  • 8 ohms: 160 W
    4 ohms: 300 W
  • Damping factor
  • >190 (ref. 8 ohms, 20Hz to 6.5kHz)
  • Frequency response
  • ±0.6 dB (20 Hz – 20 kHz)
  • Tone controls
  • Treble: ±6.0 dB at 20 kHz
    Bass: ±6.0dB at 60 Hz
  • Channel separation
  • >83 dB (1 kHz)
    >70.5 dB (10 kHz)
  • Input sensitivity (for 100 W in 8 ohms)
  • Line In: 456 mV
    Digital In: -13.23 %FS
  • Standby power
  • <0.5W

DAC SECTION

  • ESS Sabre 9028 DAC
  • Supported audio file formats
  • MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
  • Hi-Resolution audio formats
  • MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)
  • Sampling rate
  • up to 32 bit/192 kHz PCM
  • Bit depths
  • 16 – 24

BluOS SECTION

  • Supported operating systems
  • Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and Mac OS X versions
  • User interface mobile operating system BluOS
  • BluOS – Free Android and iOS App available online at Google Play and Apple App store
  • Supported cloud services*
  • Amazon Alexa, Amazon Music, Spotify, TIDAL, Deezer, Qobuz, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs
  • Free internet radio*
  • TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
  • Bluetooth quality
  • Bluetooth aptX HD built-in
  • Bluetooth connectivity
  • Two-Way (Receive and Headphone modes)
  • Network connectivity
  • Gigabit Ethernet RJ45, Wi-Fi 5

DIMENSION AND WEIGHT

  • Gross dimensions (W x H x D)**
  • 215 x 100 x 260 mm
    8 1/2 x 3 15/16 x 10 1/4 inches
  • Shipping weight
  • 5 kg (11 lbs)

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
L.
Great things, small packages indeed!

Absolutely great little unit. Versatile and truly compact - but it definitely doesn't look like your dad's amp! Has all the connections you would need, especially if you don't like to fuss around with individual components, not to mention NAD includes DiracLive!

Great service and follow up from Aamir! Summit Hi-Fi definitely came through for me!
