Description:

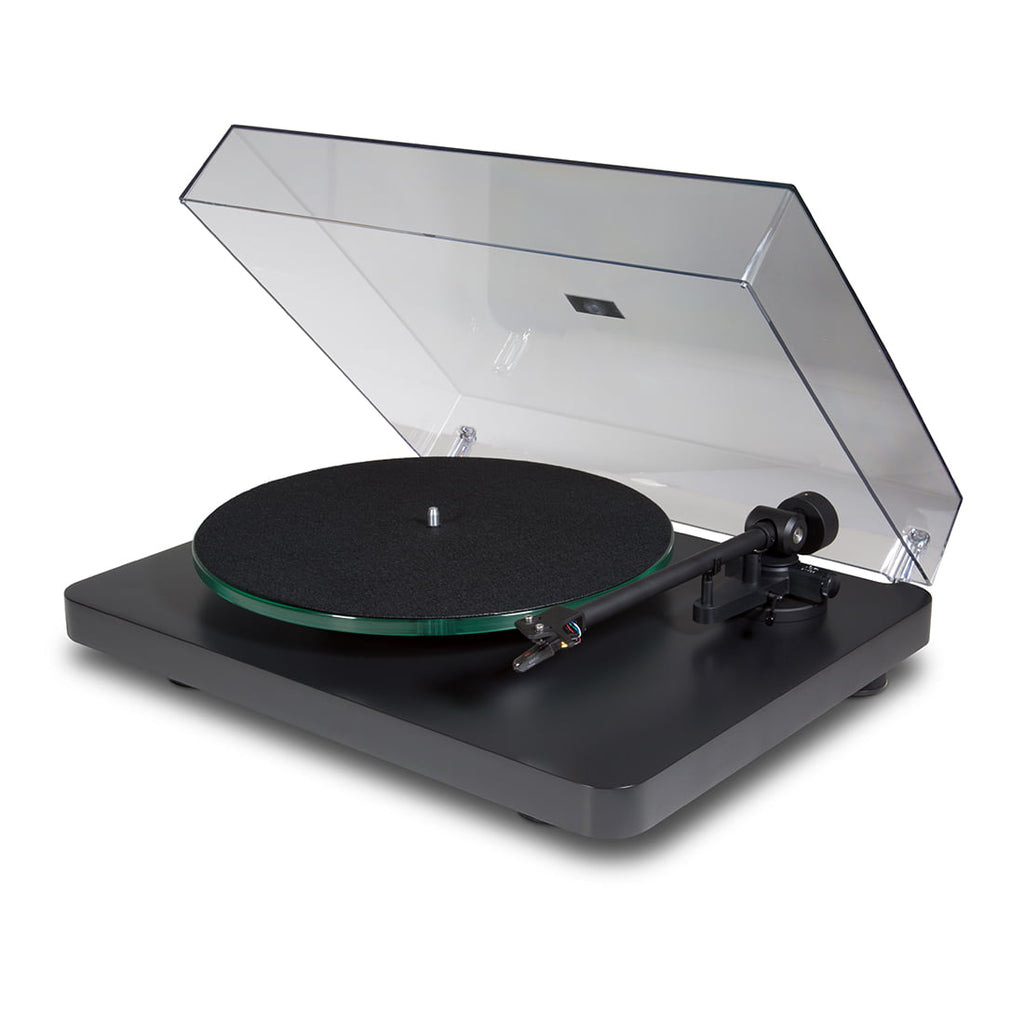

Throughout our rich 45-year history, NAD Electronics has been offering high performance turntables at unbelievably stellar prices. A component that critical listeners can applaud for its musical quality, and one that almost anybody can afford, the NAD C 558 is a full-featured, belt-driven model targeted for record enthusiasts everywhere. Pre-fitted with an Ortofon OM10 phono cartridge, the C 558 features a belt drive for maximum noise isolation, as well as a precision AC motor with isolated AC power supply that has universal voltage. Complimented by a glass platter with felt pad, a MDF plinth, and a low resonance dust cover, the C 558 delivers an outstanding listening experience unlike any other.
Features:
- Nominal speed
- 33/45 rpm, manual speed change
- Speed variance
- 33rpm: ± < 0.50%, 45rpm: ± < 0.45%
- Wow and flutter
- 33rpm: ± < 0.15%, 45rpm: ± < 0.15%
- Downforce range
- 0 – 30 mN, 0 – 3.0 grams
Tonearm
- Operation
- Manual
- Length
- 230 mm
- Overhang
- 18 mm
- Effective tonearm mass
- 9.5 g
- Cable capacitance
- 150-400pF
Cartridge
- Frequency Range
- 20-22.000Hz
- Output Voltage
- 4mV
- Tracking Force Recommended
- 15mN
- Cartridge Weight
- 5g
- Stylus Type
- 20μm/mN – elliptical
Physical Specs
- Dimensions (W x H x D)
- 435 x 340 x 125mm
- 17 1/8 x 13 3/8 x 4 59/64”
- Net Weight
- 5.5 kg (turntable) – 1.74 kg (platter)
- Shipping Weight
- 8kg
