Foundation


Please call us at 416.821.4723 for pricing & availability or

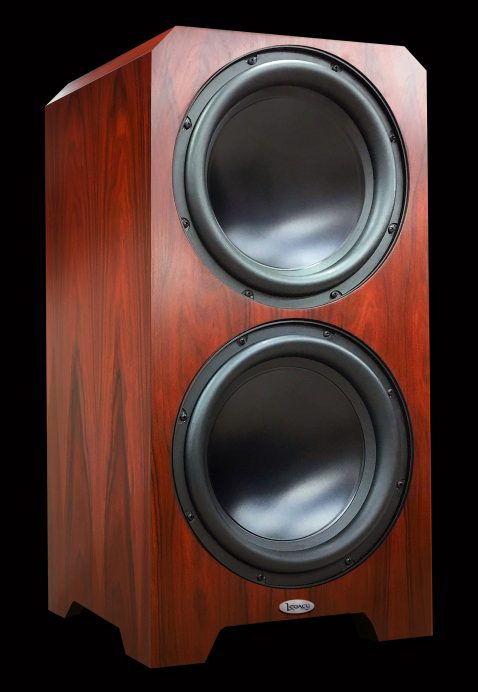

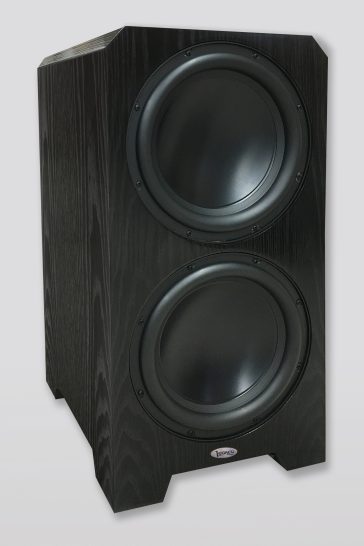

Legacy's new Foundation is a dynamic dual subwoofer system, delivering essential lower frequency output. Foundation delivers incredible attack with ultra-low distortion and world class definition utilizing only 1.5 square feet of floor space.

Lowest frequencies emerge from Legacy's Foundation subwoofer with exceedingly low distortion. Exhibiting extremely natural bass weight and transient attack, Foundation requires a mere 1.5 square feet of floor space.

Implementing patented compound passive radiator technology and a pair of Legacy's renown long throw 12" woofers, Foundation delivers a more forceful attack, rebounding without the usual mechanical shuddering present in subwoofers. Foundation offers exceptional tonality and bass definition previously unattainable at this price level.

Supercharged with ICEpower® amplifier technology, Foundation benefits from 30 amps of peak current, ultimately necessary to provide tight control to the 3 inch voice-coil within the massive 30 lb magnetic structure of each cast-frame woofer. Legacy invites you to compare this subwoofer with any competing subwoofer….we think you’ll be amazed!


Specifications:

Application: Dynamic dual subwoofer system, delivering essential low frequency output

System Type: Mutually coupled subwoofers, pneumatically loaded

Subwoofer: 2) 12" spun aluminum diaphragm, 480oz motor structure, cast frame, 3" dual 4 layer voice coil, 2" peak to peak travel

Passive Radiator: (2) 12" Patented Symmetrically Loaded Passive System radiators, 4" peak to peak travel

Low Frequency Alignment: Electrically assisted 6th Order

Inputs: Sub (LFE), L/R RCA, balanced XLR

Internal Amplification: 1000 Watts Class D ICEpower®

Freq Response (Hz, +/-3dB): 16-120

Impedance: 10k Ohms

Phase Adjustment: Cont. +/-180

Blend EQ: ( +/- 12dB@45Hz)

Max SPL: 120 dB @ 1m

Low Pass Filter Slope: 18 dB per octave

Crossover Frequency (Hz): 40-120

Dimensions (HxWxD, inches): 29 x 14.5 x 15

Weight: 113 lbs

Shipping Dimensions: 36" x 22" x 21"

Shipping Weight:  130 lbs
