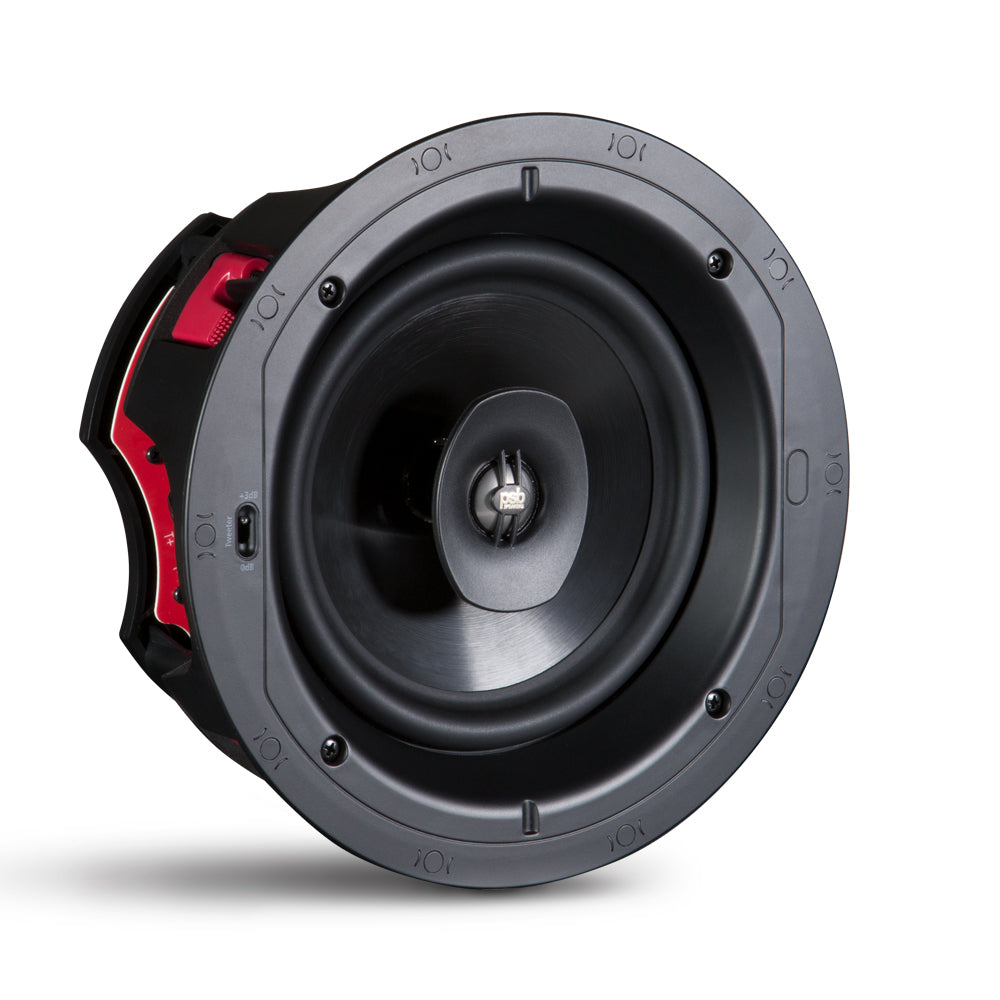

CS810 – 8″ In-Ceiling Speaker

  • Sale
  • Regular price $446.00

Select Performance Two-Way In-Ceiling Speaker

Featuring PSB’s trademark carbon-filled polypropylene cone woofer, this two-way, in-ceiling, flush-mount speaker delivers a warm and balanced hifi sound. Thanks to the high temperature voice coil, it also offers plenty of power handling. The CS810 perfectly combines advanced PSB technology with smart aesthetics to bring you an in-ceiling speaker that is both musical and nearly invisible, perfect for home theater or whole home audio.

Superb audio quality meets versatility
The CS810’s proprietary 1″ (25mm) aluminum dome tweeter is concentrically mounted and features a carefully engineered waveguide. This allows the tweeter to reproduce lower frequencies, blending perfectly with the woofer in the crossover region. In addition, a ball-joint pivot mount lets you aim the tweeter toward the listening position for enhanced imaging. A dual-position switch lets you adjust the tweeter level as well.

Ideal for music or home theatre
Backed by more than 45 years of cutting-edge research, this speaker provides unwavering sound quality that’s ideal for an in-ceiling music system or your home theatre setup.

Adaptable and stylish
The CS810 provides a nearly invisible speaker for your listening room without compromising sound quality or floor space. The simple and foolproof mounting system uses heavy-duty doglegs to ensure that installation is easy and efficient, and the provided magnetic frameless grille offers sleek concealment, allowing the CS810 to blend seamlessly into the ceiling. This discreet speaker design delivers the ultimate in performance and style.

  • 8″ (203mm) proprietary Imagine carbon-filled polypropylene cone woofer with steel basket
  • 1″ (25mm) aluminium dome tweeter
  • Frequency response: 48-20,000Hz (±3dB)
  • Aimable tweeter angle adjustment (ball-joint)
  • Precision crossover network for smooth wideband response
  • Dual-position switch for tweeter level
  • High-strength doglegs for easy installation and removal
  • Includes both round and square magnetic frameless grilles


Frequency Response

On Axis @ 0° ±3dB 48-20,000Hz


Anechoic Chamber 85dB
Listening Room 87dB


Nominal 6 Ohms
Minimum 4 Ohms

Input Power

Recommended 10 - 100 Watts

Acoustic Design

Tweeter 1" (25mm) Titanium Dome with Ferrofluid
Woofer 8" (203mm) Black Polypropylene Cone

Cast Basket

Foam Surround
Crossover 3,100Hz, LR4
Design Type Open Back

Dimensions / Weight / Finish

Size (W x H x D) Cutout Dimensions - 9 3/4" * (245mm)

Mounting Depth - 5" * (127mm)

Round Grille Diameter - 10 5/8" * (270mm)

Square Grille Size - 10 3/4" * (272mm)
Weight Net - 4.95lb (2.25kg)/each

Shipping - 8.2lb (3.7kg)/each
Finish White
