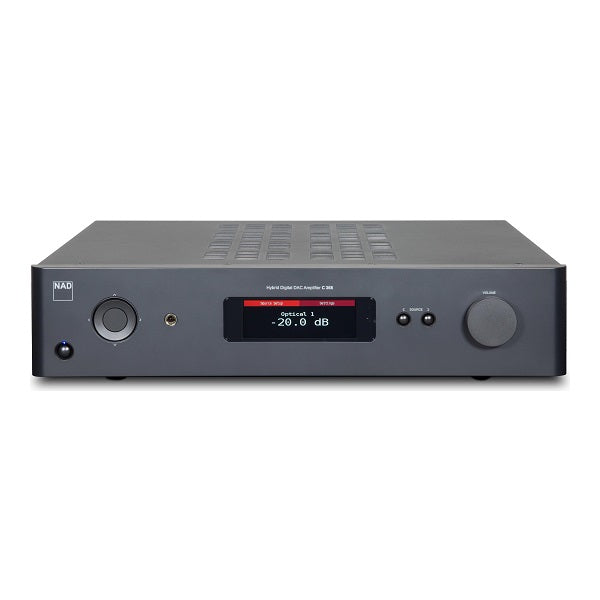

C 368 Hybrid Digital DAC Amplifier - Summit Hi-Fi
C 368 Hybrid Digital DAC Amplifier - Summit Hi-Fi C 368 Hybrid Digital DAC Amplifier - Summit Hi-Fi
$1,249.00

With the C 368 Hybrid Digital DAC Amplifier, your home audio system will never fall behind the pack. Thanks to our MDC technology, the C 368 is easily customisable and ready for all future features and upgrades. With the optional BluOS® module, the C 368 can connect to your network and be controlled through a smartphone, tablet, or desktop, and connect wirelessly to any other BluOS Enabled device to create a multi-room High Resolution Audio system. You can also instantly connect to the C 368 through Bluetooth, giving you the ability to stream wirelessly from any Bluetooth Enabled device, and if you’re a vinyl fan, you can also add a turntable. Enjoying music has never been so easy. A totally modern approach to amplification, the C 368 is the ultimate amp for any music lover’s system.

  • 80W x 2 Continuous power into 8 or 4 Ohms
  • Bluetooth A2DP with aptX supported
  • MM Phono input
  • Analogue line inputs
  • SPDIF coax and optical inputs
  • Speaker A, Speaker B
  • Stereo or Bridge mode configuration
  • Preamp/Subwoofer out
  • Headphone amplifier
  • MDC Slots for future upgrades
  • IR Remote
  • Smartphone Control App
  • 12V Trigger in/out
  • IR in/out

PREAMPLIFIER

Line Input, Pre Out

THD (20Hz-20kHz)                    <0.005% at 2V out

Signal/Noise Ratio                    >106dB (IHF; A-weighted, ref. 500mV out, unity gain)

Channel Separation                  >80dB (1kHz); >70dB (10kHz)

Input Impedance (R and C)     22 kilohm + 100pF

Maximum Input Signal            >4.5Vrms (ref. 0.1% THD)

Output Impedance                  Source Z + 240 Ohm

Input Sensitivity                       93mV (ref. 500mV out, Volume maximum)

Frequency Response             ±0.03dB (20Hz-20kHz)

Maximum voltage output – IHF load         >4.5V (ref. 0.1% THD)

Tone Controls                          Treble:±7.0dB at 20kHz

                                                   Bass: ±7.0dB at 60Hz
                                                   Balance: -10dB

Phono Input, Pre Out

THD (20Hz-20kHz)            <0.01% at 2V out

Signal to Noise Ratio      >84dB (200 Ohm source; A-weighted, ref. 500mV out)
                                          >76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)

Input Sensitivity              1.44mV (ref. 500mV out, Volume maximum)

Frequency Response     ±0.3dB (20Hz-20kHz)

Maximum Input Signal at 1kHz     >80mVrms (ref. 0.1% THD)

Line Input, Headphone Out

THD (20Hz-20kHz)            <0.005% at 1V out

Signal/Noise Ratio           >110dB (32 Ohm loads; A-weighted, ref. 2V out, unity gain)

Frequency Response      ±0.3dB (20Hz-20kHz)

Channel Separation        >60dB at 1kHz

Output Impedance          6 Ohms

GENERAL SPECIFICATIONS

Continuous Output Power into 4 Ohms and 8 Ohms (Stereo)    >80W (ref. 20-20kHz at rated THD, both channels driven)

Continuous Output Power into 8 Ohms (Bridge Mode)   300W (at 20-20kHz at THD 0.03%)

THD (20Hz-20kHz)                                <0.03% (250mW to 80W, 8 Ohms and 4 Ohms)

Signal to Noise Ratio                           >98dB (A-weighted, 500mV input, ref. 1W out in 8 Ohms)

Clipping Power                                     >95W (at 1kHz 0.1% THD)

Clipping Power (Bridge Mode)            >315W (at 1kHz 0.1% THD)

IHF Dynamic Power                              8 Ohms 120W
                                                               4 Ohms 200W
                                                              2 Ohms 250W

IHF Dynamic Power (Bridge Mode)     8 Ohms 500W
                                                                4 Ohms 560W

Peak Output Current

>20A (in 1 Ohm, 1ms)                             Damping Factor

>300 (ref. 8 Ohms, 20Hz and 6.5kHz)    Frequency Response

±0.3dB (20Hz-20kHz)                             Channel Separation

>75dB (1kHz)

>70dB (10kHz)                                        Input Sensitivity (for 80W in 8 Ohms)

Line In: 470mV; Digital In: 21% FS         Sample Rate

up to 24 bit/192kHz                                 Standby Power

<0.5W                                                      Frequency Band

2.402G-2.480G                                        Maximum Transmit Power (dBm)        7dBm ±2dBm

WEIGHT & DIMENSIONS

Gross Dimensions (W x H x D)*           435 x 100 x 390mm (17 1/8 x 3 15/16 x 15 3/8)”

Net Weight                                             7.8kg (17.2lb)

Shipping Weight                                    10.1kg (22.3lb)

*Gross dimensions include feet, extended buttons and rear panel terminals
