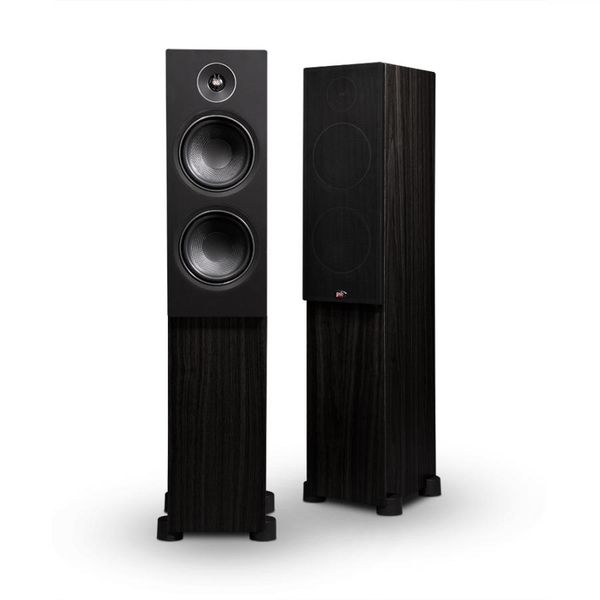

Signature speaker for both sound and aesthetics.
The PSB T20 Tower delivers the highest quality acoustics in the new Alpha Series and will easily fill any size room with lush, full-bodied sound. Leveraging the latest research in acoustic design and most advanced cabinet and driver technologies, the all-new Alpha tower adds an additional custom 5.25” woofer, while utilizing the Alpha Series’ patent tweeter and crossover design, to deliver bigger and bolder sound with flawless imaging. With a centre channel to match, the new T20 tower is the perfect start to creating the ultimate surround system.
Lifelike acoustics and detail
The T20 uses a 0.75” black anodized aluminium dome tweeter to extend the high-frequency response further than any Alpha ever before while lowering distortion to deliver a lush soundstage full of details. Unlike lesser designs at this price, all the new Alpha Series tweeters employ ferrofluid cooling to prevent dynamic compression and a neodymium magnet for high sensitivity. The tweeter’s front waveguide and its unique placement below the woofer work together to smooth the response at the crossover and perfect on and off-axis performance.
Developed for deep, detailed bass
Featuring PSB’s exclusive dual 5.25” woofer connected to a dual-layer voice coil for incredible conductivity, the newest Alpha Series tower provides remarkable low-frequency response and the exceptional efficiency for a speaker at this price. Starting with a specially textured polypropylene cone that lowers distortion and reduces breakup, the woofer is perfectly matched with the tweeter at the crossover for a smooth sounding transition between high and low frequencies. It’s also backed with a rear-firing port that uses bass flex to tightly control the bass response and extend it even lower.
Reference crossover design
The redesigned Alpha Series tower features a new crossover that exceeds speaker standards with a innovative design that delivers the tightest control and the flattest frequency response. Developed for more than directing low and high frequencies to the individual drivers, the crossover used in the T20 employs a very advanced acoustic Butterworth low-pass filter in the cross to lower distortion and create a large, detailed soundstage for the best listening experience.
Crafted with precision
Using a special MDF material and a unique combination of wall thickness and bracing, the Alpha T20 Tower flawlessly controls resonances while leveraging a light internal material that has been accurately positioned to reduce standing waves. The sturdy, well-constructed cabinet is finished with a high-quality wood grain vinyl and features acoustically-transparent magnetic grilles that make the speakers disappear into your décor without sonic interference.
- ¾” Black anodized aluminium dome tweeter with front waveguide
- Two 5.25” Textured polypropylene woofers with rubber surround
- Bass reflex cabinet design with a rear-firing port
- Acoustically-transparent detachable magnetic grilles
- Dual five-way gold-plated binding post speaker terminals
- High-quality woodgrain vinyl finish

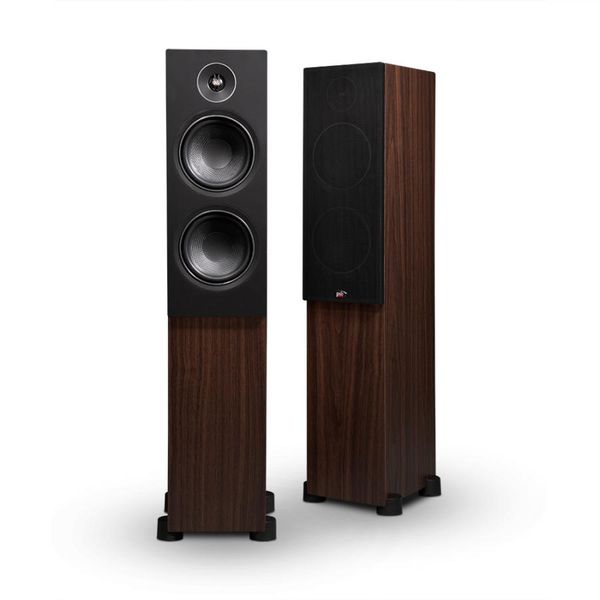

- Available in Black Ash or American Walnut
Specs
Frequency Response
On Axis @ 0°±3dB: 36-21,000Hz
On Axis @ 0°±1 1/2dB: 54-20,000Hz
Off Axis @ 30°±1 1/2dB: 54-10,000Hz
LF Cutoff -10dB: 28Hz
Sensitivity
10dBNetShippingAnechoic Chamber: 88dB
Listening Room: 90dB
Impedance
Nominal: 8 Ohms
Minimum: 6 Ohms
Input Power
Recommended: 15 - 120 Watts
Program: 60 Watts
Acoustic Design
Tweeter (Nominal): 3/4” (19mm) Black Anodized Aluminum Dome with Ferrofluid and Neodymium Magnet
Woofer (Nominal): 2 x 5 1/4” (133mm) Textured Polypropylene Cone withRubber Surround
Crossover: 2,500Hz, LR4
Design Type: Tuned Port Bass Refl ex2 1/2” (63.5mm) Rear Port
CONSTRUCTION
Cabinet Sleeve: 5/8” (15mm) MDF
Baffle Front: 1” (25.4mm) MDF
Baffle Rear: 5/8” (15mm) MDF
Grille Face: Black Steel Micro Perf
Frame: Magnetic Attachment
Size (W x H x D): 6 3/4” x 32 1/2” x 9 3/8” *(170 x 825 x 243mm)
Weight:
Net: 26.15lb (11.9kg)/each
Shipping: 62.7lb (28.5kg)/pr
