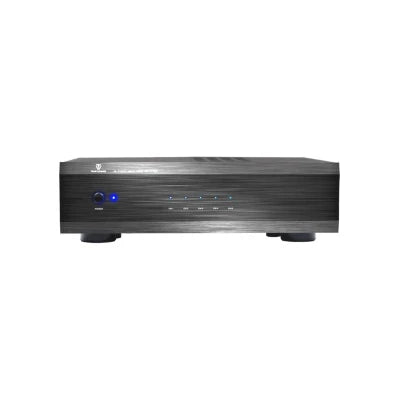

Tonewinner AD-5100PA+ 100WX5 Channel Power Toroidal Amplifier

  • Sale
  • $525.00
  • Regular price $600.00

ToneWinner AD-5100PA+ 5 Ch Power Amplifier With Toroidal Transformer. -------->>> For Only $699 + Free Shipping



Experience the pinnacle of audio performance with the Tonewinner AD-5100PA+ 5-Channel Amplifier, a masterpiece that takes your sound experience to new dimensions. Crafted to deliver astonishing power, precision, and clarity, this amplifier stands as a testament to Tonewinner's commitment to pushing the boundaries of sonic excellence.

Model: AD-5100PA+ 5-Channel Amplifier

Unleash Audio Brilliance: The Tonewinner AD-5100PA+ Amplifier is your gateway to a world of breathtaking sound. Whether you're immersing yourself in blockbuster movies or losing yourself in the intricate notes of your favorite music, this amplifier ensures that every sound is reproduced with unrivaled clarity, depth, and impact.

Key Features:

  • Uncompromising Power: With a formidable power output, the AD-5100PA+ effortlessly drives your speakers to deliver impactful and lifelike audio, bringing your entertainment to life in your home.
  • Advanced Circuitry: Designed with precision engineering, this amplifier boasts advanced circuitry that minimizes distortion and maximizes signal purity, ensuring that your audio remains faithful to the original recording.
  • Versatile Connectivity: The AD-5100PA+ offers RCA connections, providing compatibility with a variety of audio sources and systems.
  • Enhanced Audio Dynamics: Experience an expanded soundstage and improved dynamics, allowing you to feel every detail of your content, from whispering dialogues to thunderous explosions.
  • Stylish Design: The amplifier's sleek aesthetics and minimalist design effortlessly complement any home audio setup, adding a touch of sophistication to your space.

5 Channels of Powerful Amplification

The AD-5100PA+ features 5 discrete channels of high-power Class AB amplification, made possible by the audiophile-grade toroidal transformer. It features a low-noise differential amplifier circuit for improved signal-to-noise ratio. Ensuring that only the best quality signal is passed through the amplifier, each channel features 24K gold-plated unbalanced (RCA) inputs along with a pair of heavy-duty speaker outputs.

Five-Fold Protection

With intelligent systems and temperature compensation under the hood, the AD-5100PA+ ensures stable operation and is protected against damage. The AD-5100PA+ boasts Short Circuit Protection, Overload Protection, Overheating Protection, Overvoltage and Overcurrent Protection.

Built with an aluminum chassis and supported by shockproof feet, the AD-5100PA+ is a resilient and powerful surround amplifier that will handle anything you throw at it.

Audio Specifications (High-Powered Single Channel Modules):

  • 117 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven
  • 164 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven
  • 100 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; Two channel driven
  • 121 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; Two channel driven
  • 71+ Watts RMS/channel; 20 Hz – 20kHz; THD<0.1%; 8 Ohms; all five channel driven
  • Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 10 Hz to 55 kHz (+ / – 0.1 dB, 600ohm), 10 Hz to 82 kHz (+ / – 0.1 dB, 200ohm)
  • Broadband Frequency Response: 1 Hz to 89 kHz +0/-2 dB.THD + noise: < 0.009%; at 100 watts RMS; 1 kHz; 8 Ohms
  • Signal to Noise Ratio (8 Ohm load):
  • > 118 dB; ref FTC rated power; unbalanced input (A-weighted).
  • > 98 dB; ref 1 watt; unbalanced input (A-weighted). Class AB: 96dB
  • Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
  • Damping Factor (8 Ohm load): 134.13
  • Gain: 29dB
  • Maximum Power Consumption: 633.6W, 240V. 613.2W, 120V

 Flexible Signal Connections and Power Options

  • Unbalanced inputs via industry standard RCA connectors accept all standard unbalanced interconnects.
  • Heavy-duty insulated five-way speaker binding posts allow you to use a wide range of speaker cables with bare wires, lugs, or banana plugs.
  • Remote trigger input and output allow the AD 5100+ to control and be controlled by other trigger-enabled equipment.
  • The AD5100+ is designed to operate on either 115 VAC or 230 VAC at 50/60 Hz and will automatically detect and configure itself for the proper line voltage.

Front Panel Controls and Indicators

  • Standby: push button.
  • Status LEDs: one per channel; blue.
  • Status LEDs change to red to indicate a fault condition.
  • Standby LED: Red

Dimensions W x H x D: 431 x 130 x 352 mm
Weight: 9.6kg

Elevate your audio journey with the Tonewinner AD-5100PA+ 5-Channel Amplifier a fusion of technological brilliance, exquisite design, and acoustic mastery. Whether you're creating a home theater that rivals the cinema or immersing yourself in the nuances of your favorite music, this amplifier promises an auditory experience that is simply extraordinary. Unleash the full potential of your audio with the AD-5100PA+, and let the sound resonate with emotion and authenticity like never before.

2 Years
ToneWinner Amplifiers and Receivers include a 2-year warranty.

If you experience any issues with this product please don't hesitate to contact us.
