V Loudspeaker

  • Sale
  • Regular price $75,350.00

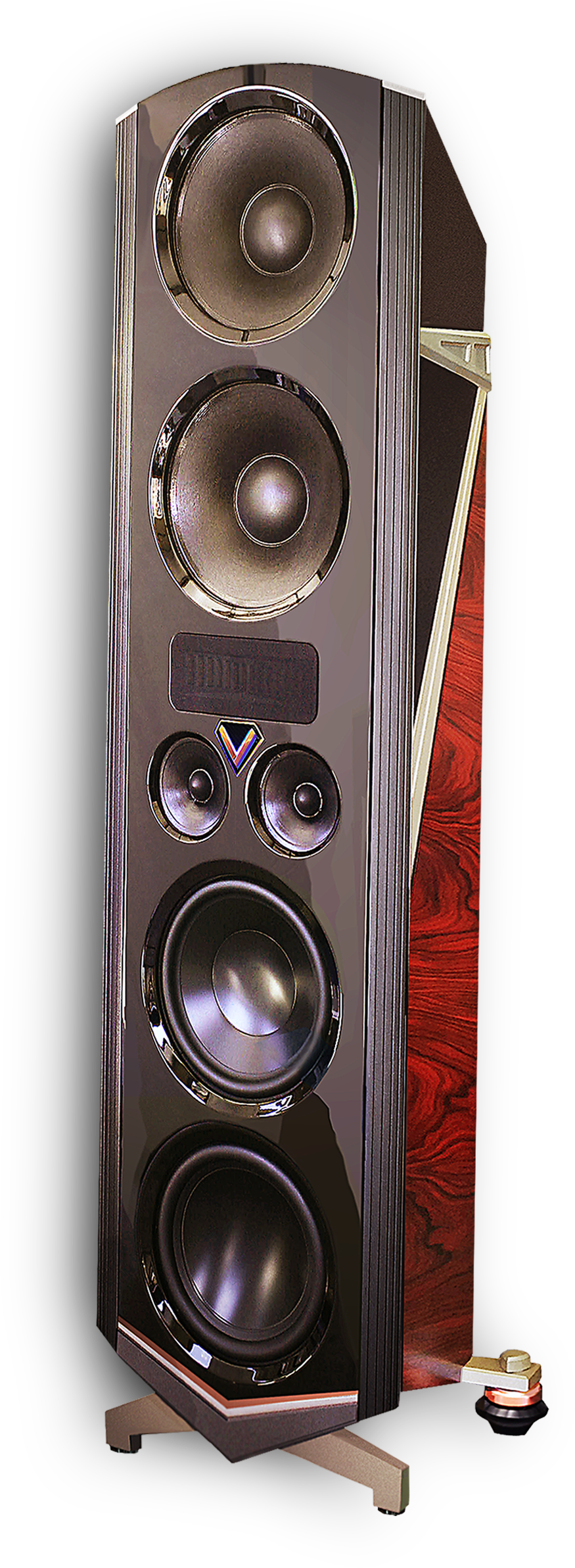

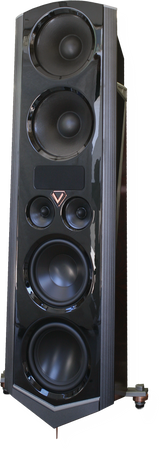

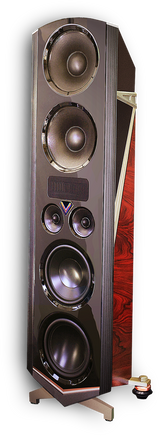

The V high performance speaker system from Legacy Audio is a groundbreaking achievement that unites perfect timing with incredible design. V features the state of the art Legacy Wavelet Processor.

This 4 way system is the first to use the Legacy Wavelet Processor (an advanced speaker & room resonance correction system with a high-end DAC/Preamplifier) and features open air dipole midrange, dual subwoofers with internal amplification, two Legacy 4” long AMT tweeters in a specially optimized post convergent array and craftsmanship display options.

Application: DSP Based ultra-dynamic system with unprecedented room adaptability
System Type: 8 driver system with 4 channel DSP crossover
Tweeter: Dual 4" AMT Ribbons configured in post convergent array
Midrange: Dual 6" curvilinear with phase plug configured in dipolar array
Midwoofer: Dual 14" Carbon/pulp, neodymium motor, cast frame, dipolar pattern
Bass: 12" ultra-linear bass driver, 15 lb motor structure
Subwoofer: 12" Aluminum diaphragm, 480 oz motor structure, cast frame, 3" dual 4 layer voice coil
Passive Radiator: (3) 10" Mass loaded pneumatic
Low Frequency Alignment: Compound B6, B2 handing up to dipole
Inputs: 2 pair binding posts for Midbass and Upper Range, 2 XLR balanced for Sub & Bass
Internal Amplification: ICE powered Subwoofer 1000w, Bass 500w
Recommended Amplification: 2 external channels of 30w or greater required. Sub & Bass sections are driven with a total of 1500w of internal Power
Freq. Response (Hz, +/-2dB): 16Hz -30kHz
Impedance: 4 ohm upper range/ 10k Amp Input
Sensitivity: 98 dB (2.83 Volts@1m)
Crossover: 80 Hz, 400 Hz, 3kHz
Cabinet Dimensions: HxWxD (inches):: 72 x 18.75 x 19
Weight (each): 231 Ibs
Shipping Weight (each): 362 Ibs
Available Finishes:
