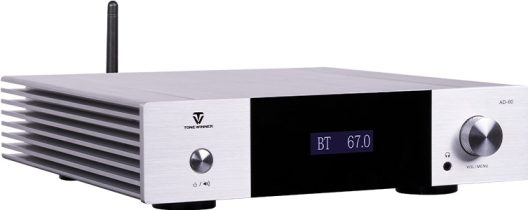

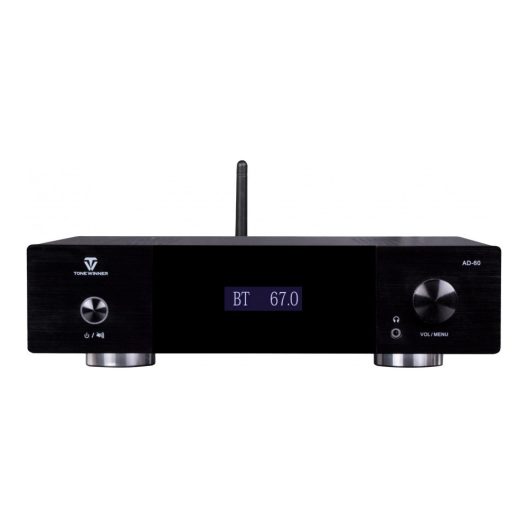

Tonewinner AD-60 Integrated Power Amplifier
The Tonewinner AD-60 is a versatile integrated power amplifier, offering 2 x 80W of power at 4Ω with low distortion and fast response, thanks to its Class AB design. Its extensive range of connectivity options allows it to seamlessly integrate into a variety of setups, whether for home cinema via the HDMI/ARC socket or for wireless control using Bluetooth 5.0.
Key Features
Powerful Toroidal Transformer
The Tonewinner AD-60 is equipped with an ultra-large toroidal transformer capable of delivering up to 100W, ensuring a clean, consistent electrical signal ideal for high-fidelity (Hi-Fi) use. Paired with high-performance capacitors, it provides stable, noise-free power.
80W Output at 4Ω
In its amplification stage, the AD-60 delivers 2 x 80W at 4Ω and 2 x 50W at 8Ω, providing transparent, high-quality sound. The volume control, along with coupling and filtering capacitors, ensures minimal signal distortion, with a total harmonic distortion (THD) of just 0.025%. The amplifier's wide frequency response ranges from 20Hz to 100kHz, ensuring clear, detailed audio reproduction across the spectrum.

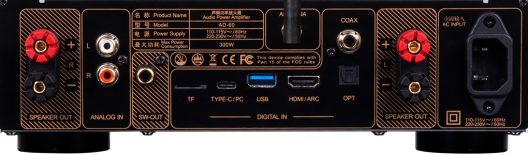

Extensive Connectivity
The AD-60 offers flexible connectivity options, making it suitable for various devices and setups. It features an analog RCA input and multiple digital inputs, including TF card, USB-C (for PC connection), USB-A, Toslink optical, coaxial, and HDMI/ARC. Additionally, its Bluetooth 5.0 capability allows wireless streaming, and it is compatible with both Android and iOS devices through a dedicated app.
Specifications
- Product Type: Integrated Amplifier
- Amplification Type: Class AB
- Number of Channels: Stereo (2)
Inputs:
- 1x USB-A
- 1x USB-C
- 1x TF Card Slot
- 1x HDMI ARC
- 1x Optical Toslink
- 1x Coaxial
- 1x Stereo RCA
- 1x Bluetooth 5.0
Outputs:
- 1x Stereo Speaker Terminal
- 1x 3.5mm Jack Headphone Output
- 1x Subwoofer Output
Output Power:
- 80W @ 4Ω
- 50W @ 8Ω
Performance Metrics:
- Total Harmonic Distortion (THD): ≤ 0.025% @1kHz
- Input Impedance: 20kΩ
- Signal-to-Noise Ratio (SNR): 100dB
- Frequency Response: 20Hz – 100kHz (+1/-3dB)
- Gain: 23.9dB
- Supported Bluetooth Codecs: SBC, AAC
General:
- Supply Voltage: 115V/60Hz, 230V/50Hz
- Dimensions: 300 x 335 x 83mm
- Net Weight: Approx. 12.1 lbs
- Colour: Silver
Package Includes:
- 1x Tonewinner AD-60
- 1x Remote Control (CR2016 battery not included)
- 1x Power Cable
- 1x Optical Fiber Cable
